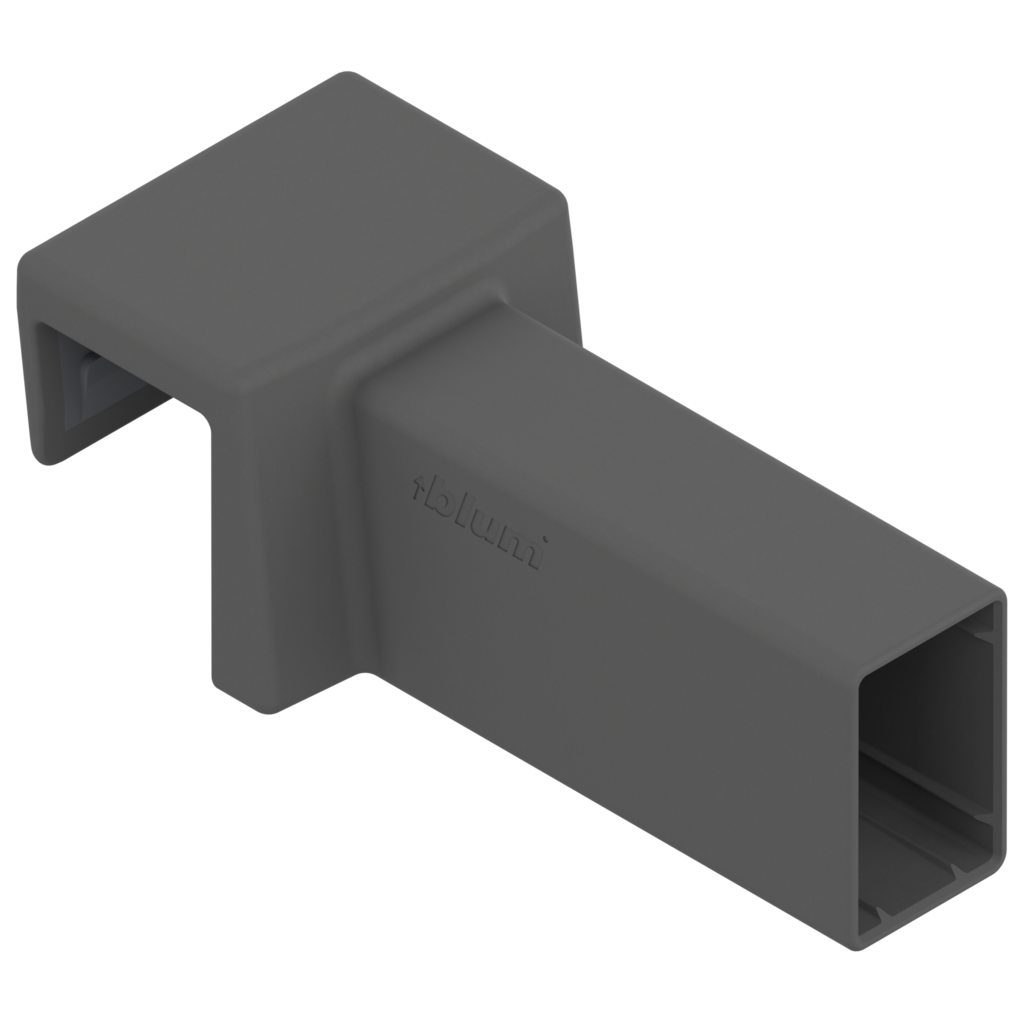

AMBIA-LINE cross gallery connector

AMBIA-LINE cross gallery connector
AMBIA-LINE cross gallery connector
Ident no: 03228114
Part no.: ZC4U10E0 REL-HAL 80OG-M
Box qty: 80 pcs
  • gallery connection gap: 14.8 mm

AMBIA-LINE cross gallery connector

  • gallery connection gap: 14.8 mm
Ident no: 03228114 Part no.: ZC4U10E0 REL-HAL 80OG-M Box qty: 80 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The AMBIA-LINE cross gallery connector is used to fix the cross gallery in the MERIVOBOX box system.
description Technical data expand_more

Technical data

gallery connection gap
14.8 mm
type
cross gallery connector
for number of galleries
1
side position
left/right
material
nylon 2 material constituent
