AMBIA-LINE cross gallery connector

chevron_left Back

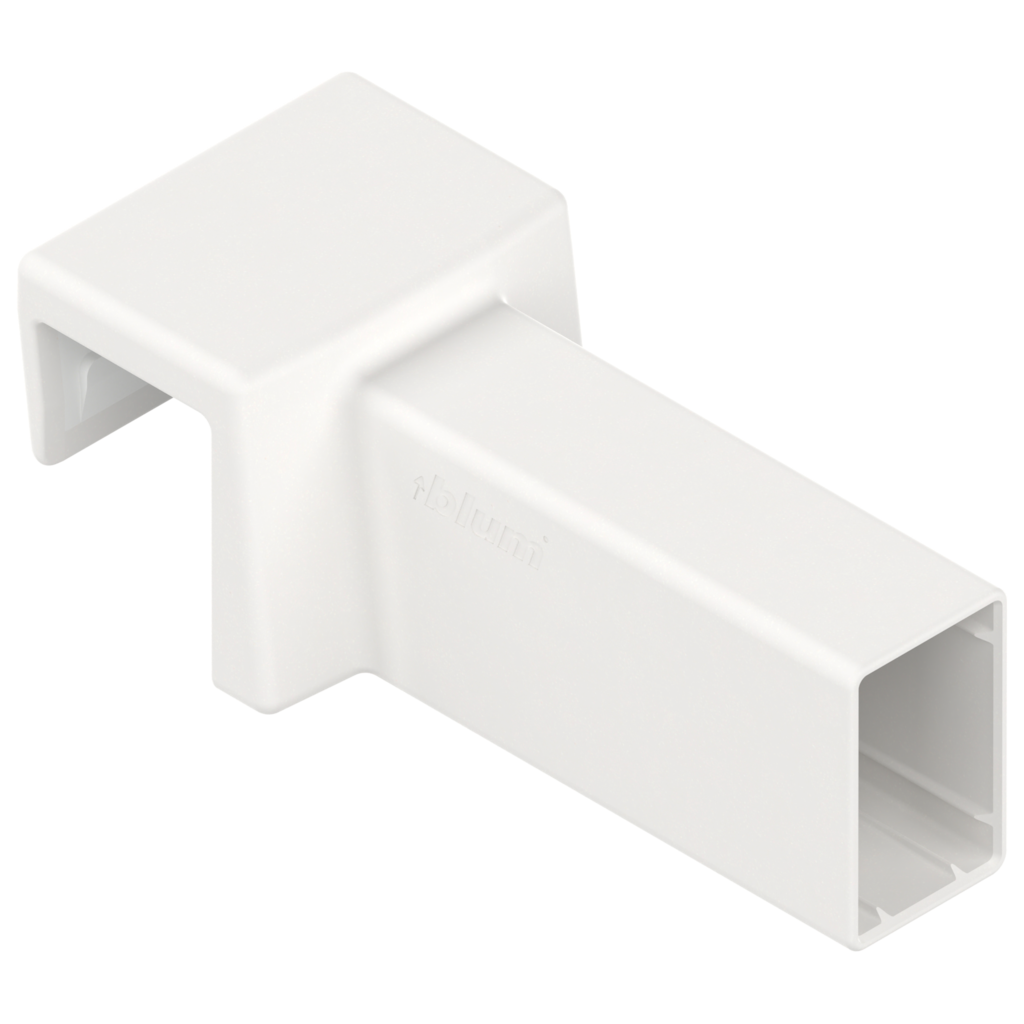

AMBIA-LINE cross gallery connector
AMBIA-LINE cross gallery connector
Ident no: 05266775
Part no.: ZC4U10E0 REL-HAL 80SW-M
Box qty: 80 pcs
AMBIA-LINE cross gallery connector, for MERIVOBOX, Silk white matt
Ident no: 05266775 Part no.: ZC4U10E0 REL-HAL 80SW-M Box qty: 80 pcs
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The cross gallery connector is used to fix the cross gallery in place. The cross gallery is inserted into the connector. The connector itself is attached to the longside gallery rail.
description Technical data expand_more

Technical data

type
cross gallery connector
for number of galleries
1
side position
left/right
material
nylon 2 material constituent
colour/surface
silk white matt
