AMBIA-LINE cross gallery connector

chevron_left Back

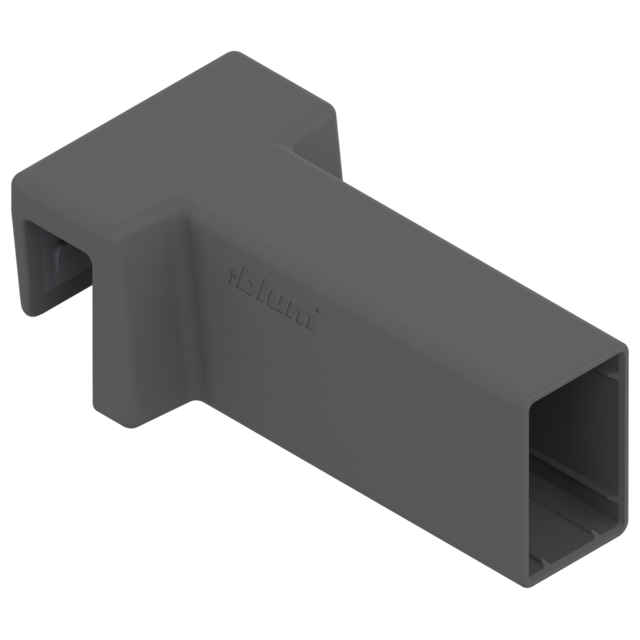

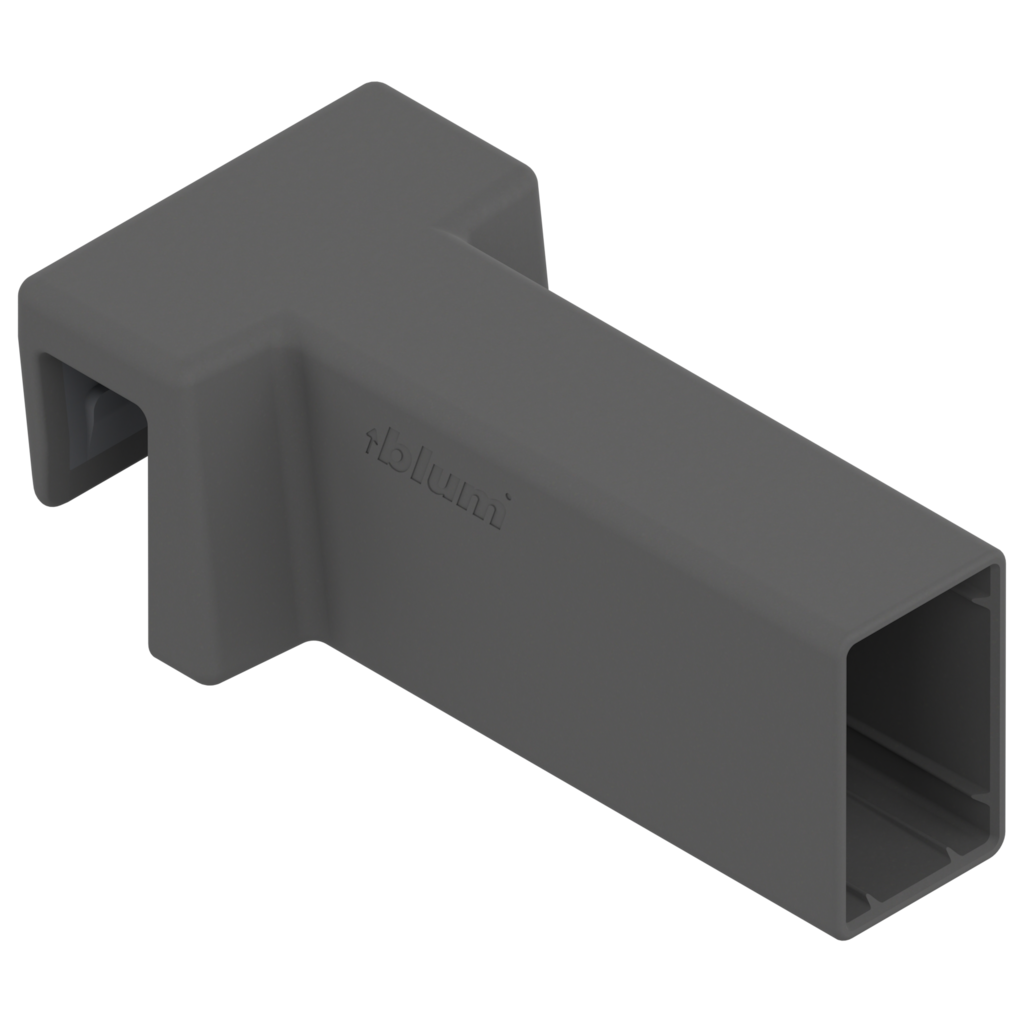

AMBIA-LINE cross gallery connector
AMBIA-LINE cross gallery connector
Ident no: 09055199
Part no.: ZC4U11E0 REL-HAL 80OG-M
Box qty: 80 pcs
AMBIA-LINE glass cross gallery connector, for MERIVOBOX, Orion grey matt
Ident no: 09055199 Part no.: ZC4U11E0 REL-HAL 80OG-M Box qty: 80 pcs
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Querrelinghalter dient zur Befestigung der Querreling. Er wird an der Längsreling aufgesteckt.
description Technical data expand_more

Technical data

type
cross gallery connector
for number of galleries
1
side position
left/right
width
32 mm
material
nylon 2 material constituent
