AMBIA-LINE frames height 49.9 mm, NL = 500 mm

chevron_left Back

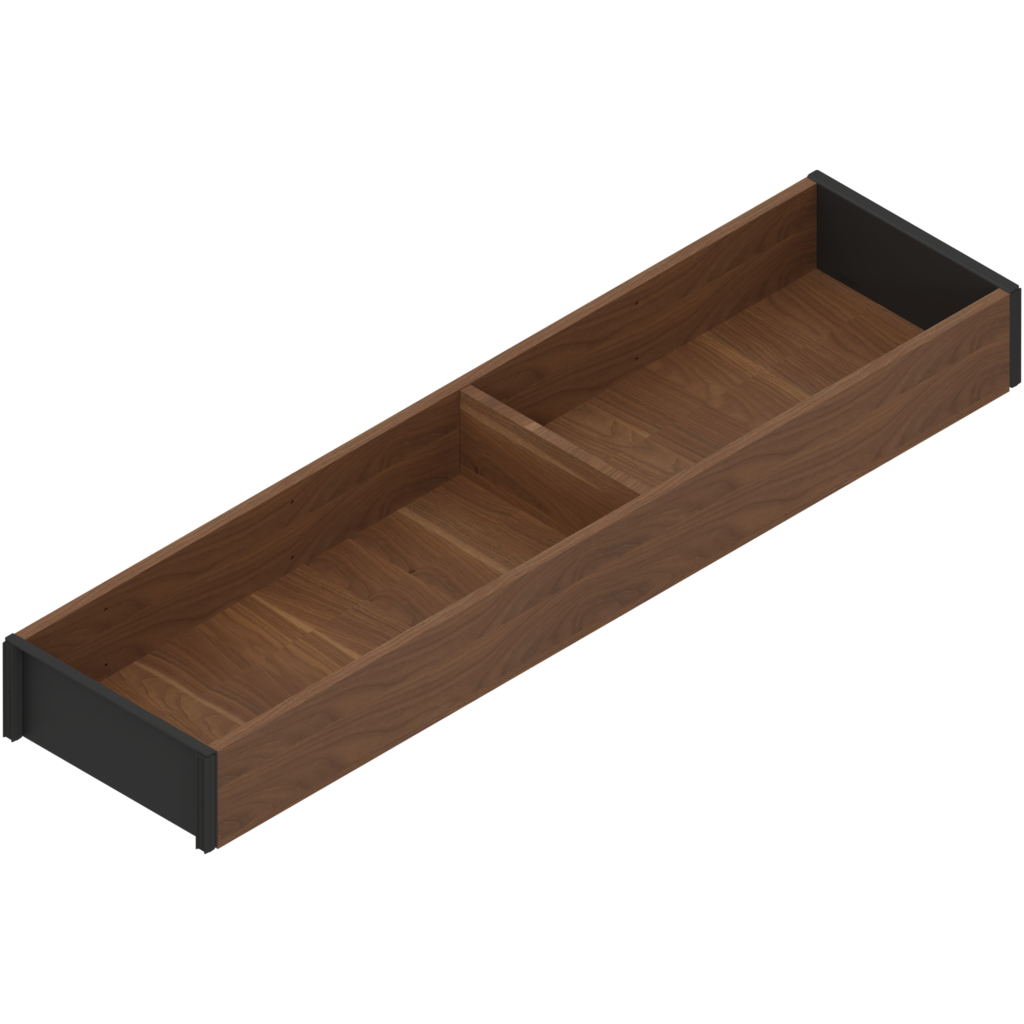

AMBIA-LINE frames height 49.9 mm, NL = 500 mm
AMBIA-LINE frames height 49.9 mm, NL = 500 mm
Ident no: 05697562
Part no.: ZC7S500RHA AMB-RA V1 N01C
Box qty: 1 pc
  • colour/surface: Tennessee walnut light/carbon black matt
  • material: wood
  • suitable for nominal length: 500 mm
  • width: 118 mm
AMBIA-LINE customisable frame, for LEGRABOX drawer, wood design, NL=500 mm, width=118 mm, for cabinet side panel thickness 18/19 mm, Tenn.wal./carbonbl.
Ident no: 05697562 Part no.: ZC7S500RHA AMB-RA V1 N01C Box qty: 1 pc
  • colour/surface: Tennessee walnut light/carbon black matt
  • material: wood
  • suitable for nominal length: 500 mm
  • width: 118 mm
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
build Technical data expand_more

Technical data

type
frames
colour/surface
Tennessee walnut light/carbon black matt
height
49.9 mm
length
472 mm
inner dividing system
AMBIA-LINE
