AMBIA-LINE frames height 51.05 mm, NL = 500 mm

chevron_left Back

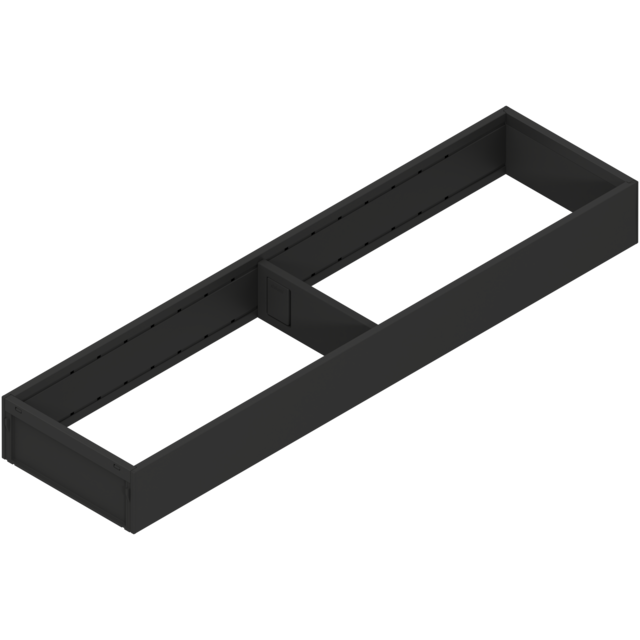

AMBIA-LINE frames height 51.05 mm, NL = 500 mm
AMBIA-LINE frames height 51.05 mm, NL = 500 mm
Ident no: 05372619
Part no.: ZC7S500RSD AMB-RA V1 CS-M
Box qty: 1 pc
  • colour/surface: carbon black matt
  • material: steel
  • suitable for nominal length: 500 mm
  • width: 124 mm
AMBIA-LINE customisable frame, for LEGRABOX drawer, steel, NL=500 mm, width=124 mm, for cabinet side panel thickness 15/16 mm, carbon black matt
Ident no: 05372619 Part no.: ZC7S500RSD AMB-RA V1 CS-M Box qty: 1 pc
  • colour/surface: carbon black matt
  • material: steel
  • suitable for nominal length: 500 mm
  • width: 124 mm
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Das Inneneinteilungssystem AMBIA-LINE im schicken Rahmendesign hilft, das Innenleben von LEGRABOX und MERIVOBOX zu organisieren. Damit zieht in jede Schublade Ordnung ein. Die Rahmen können beliebig im Schubkasten positioniert werden.
description Technical data expand_more

Technical data

type
frames
colour/surface
carbon black matt
fixing method
magnetic
height
51.05 mm
length
472 mm
