Angle template for CLIP and MODUL mounting plates, TIP-ON and BLUMOTION

chevron_left Back

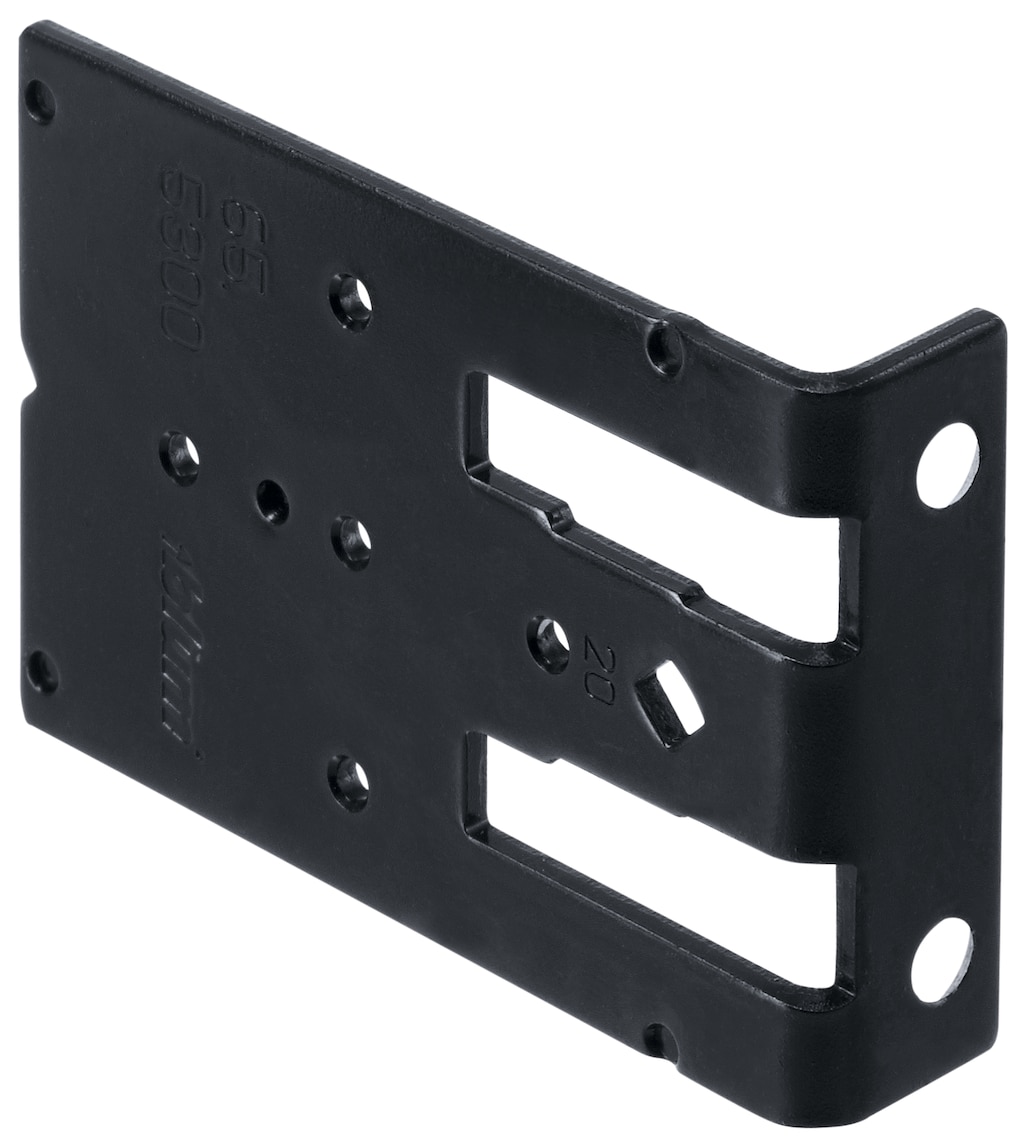

Angle template for CLIP and MODUL mounting plates, TIP-ON and BLUMOTION
Template, for BLUMOTION / CLIP mounting plates / MODUL mounting plates / TIP-ON for doors, black-nickel plated
Ident no: 01344034
Part no.: 65.5300* ANS-WIN S-ZN
Box qty: 1 pc
  • type: angle template

Template, for BLUMOTION / CLIP mounting plates / MODUL mounting plates / TIP-ON for doors, black-nickel plated

Ident no: 01344034 Part no.: 65.5300* ANS-WIN S-ZN Box qty: 1 pc
  • type: angle template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
angle template
colour/surface
black-nickel plated
material
steel
scope of delivery
1x drilling template
template suitable for
CLIP and MODUL mounting plates, TIP-ON and BLUMOTION
