Angled spacer 5°

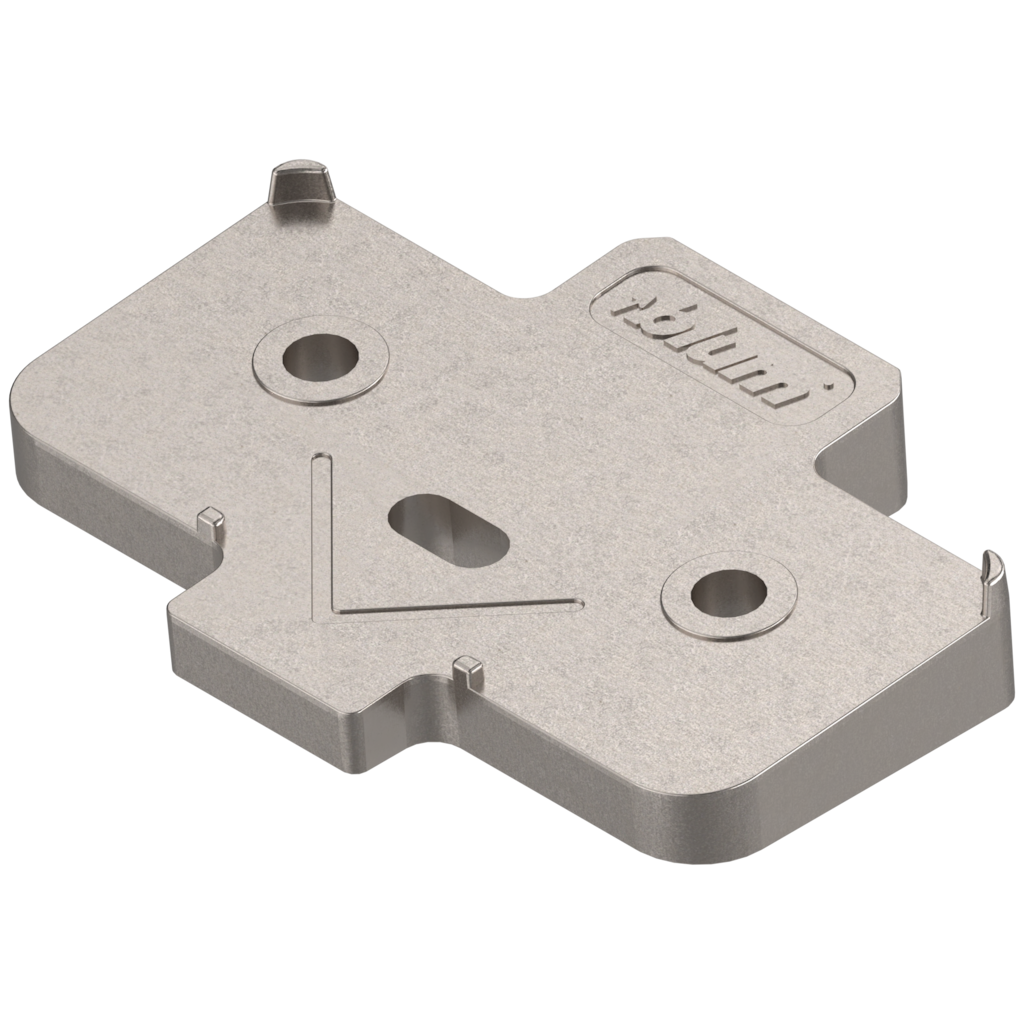

Angled spacer 5°
Ident no: 02518453
Part no.: 171A5040 W-DIST V50 NI
Box qty: 50 pcs
  • angled spacer: 5 °
  • fixing method: for screwing on
  • angled spacer tip dimension: 4.40 mm
Angled spacer, cruciform, +5°, screw-on version, Nickel plated
Ident no: 02518453 Part no.: 171A5040 W-DIST V50 NI Box qty: 50 pcs
  • angled spacer: 5 °
  • fixing method: for screwing on
  • angled spacer tip dimension: 4.40 mm
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The angled spacer is placed underneath a mounting plate to enable different angled applications.
description Technical data expand_more

Technical data

type
angled spacer
angled spacer
5 °
colour/surface
nickel plated
fixing method
for screwing on
length
56.6 mm
