Assembly device

chevron_left Back
Assembly device
Assembly device
Ident no: 03799283
Part no.: ZMZ.20S6 RWH+ZUT
Box qty: 1 pc
BOXFIX plus, , for LEGRABOX/MERIVOBOX/TANDEMBOX, assembly type: nails (rectangular heads)
Ident no: 03799283 Part no.: ZMZ.20S6 RWH+ZUT Box qty: 1 pc
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

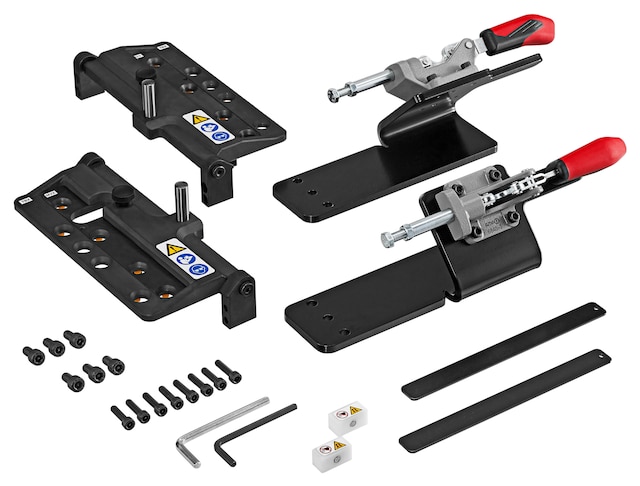

Retrofittable accessory for BOXFIX plus consisting of a swing plate and closing lever for the nailer.
description Technical data expand_more

Technical data

type
assembly device
scope of delivery
4x BOXFIX plus
assembly option
LEGRABOX / MERIVOBOX / TANDEMBOX
