AVENTOS HF lever

chevron_left Back

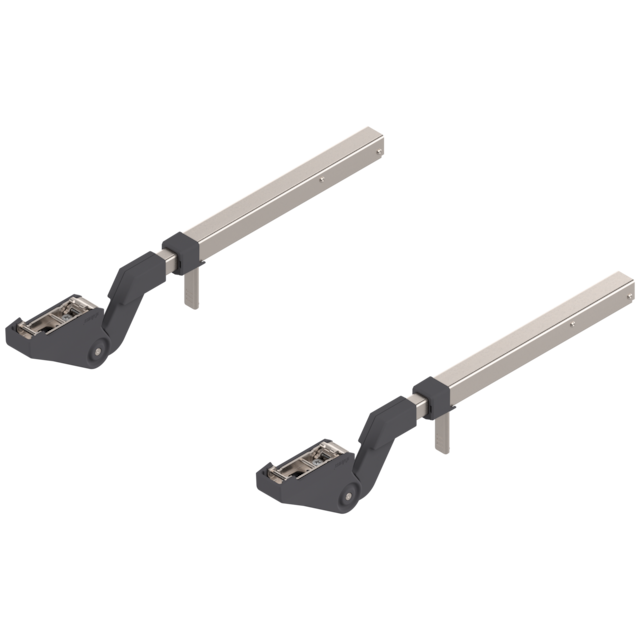

AVENTOS HF lever
AVENTOS HF lever
Ident no: 05397438
Part no.: 20F3200.01TE-HEB S2 NI
Box qty: 1 pc
  • lever type: 20F320x
  • for cabinet height: 480.0 - 570.0 mm
AVENTOS HF bi-fold lift system, lever (Set), CH=480-570 mm, symmetrical, Nickel plated
Ident no: 05397438 Part no.: 20F3200.01TE-HEB S2 NI Box qty: 1 pc
  • lever type: 20F320x
  • for cabinet height: 480.0 - 570.0 mm
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Hebel stellt die Verbindung zwischen Kraftspeicher und Frontbefestigung sicher und sorgt für eine stabile Bewegung beim Öffnen und Schließen der Klappe.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HF
lever type
20F320x
min. front height
239.00 mm
max. front height
285.00 mm
