AVENTOS HF top complete set

chevron_left Back

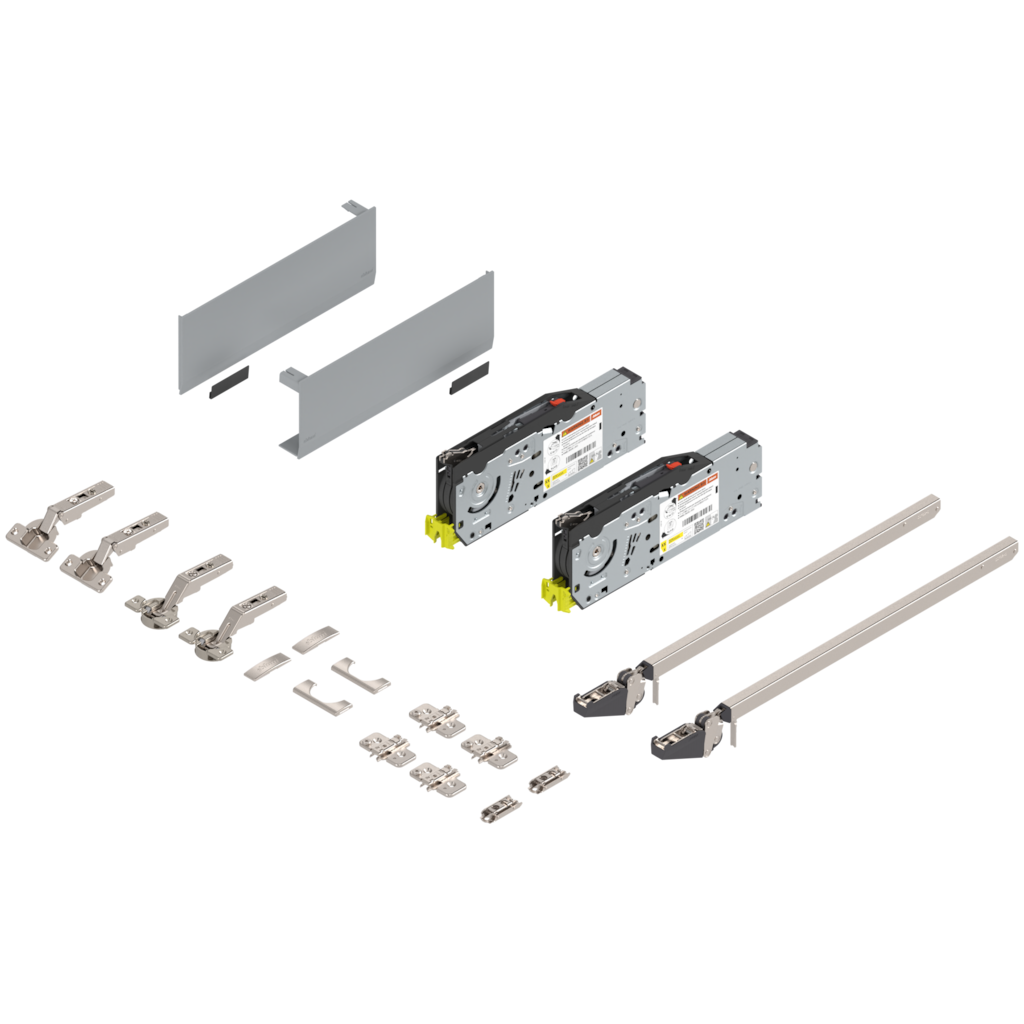

AVENTOS HF top complete set
AVENTOS HF top complete set
Ident no: 08781318
Part no.: 22F1809 AV-HF GRV1HG/T
Box qty: 1 pc
  • power factor: 10000–19300 (with 2 pcs.)
  • motion technology: integrated BLUMOTION / suitable for SERVO-DRIVE
  • fixing method on the cabinet: with screws
  • colour/surface: zinc plated
AVENTOS HF top bi-fold lift system (set), PF: 10000-19300 (with 2 pcs.), suitable for SERVO-DRIVE, Light grey/Dark grey
Ident no: 08781318 Part no.: 22F1809 AV-HF GRV1HG/T Box qty: 1 pc
  • power factor: 10000–19300 (with 2 pcs.)
  • motion technology: integrated BLUMOTION / suitable for SERVO-DRIVE
  • fixing method on the cabinet: with screws
  • colour/surface: zinc plated
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Mit dem Komplett-Set lässt sich das Klappensystem AVENTOS HF top realisieren. Mit der Hochfaltklappe AVENTOS HF top wird ein komfortabler und platzsparender Oberschrank für zweiteilige Fronten ermöglicht. AVENTOS HF top zeichnet sich durch fixe Bohrpositionen aus. Die Montage erfolgt weitestgehend werkzeuglos, indem die Hebel am Kraftspeicher eingeclippt werden. Es gibt zwei Arten der Kraftspeicherbefestigung: Über integrierte Systemschrauben oder mittels Positionsfindung. AVENTOS HF top bietet komfortable Bedienung und sorgt für ein harmonisches Fugenbild.
description Technical data expand_more

Technical data

lift system
AVENTOS HF top
type
complete set
power factor
10000–19300 (with 2 pcs.)
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
fixing method on the cabinet
with screws
