AVENTOS HF top lever

chevron_left Back

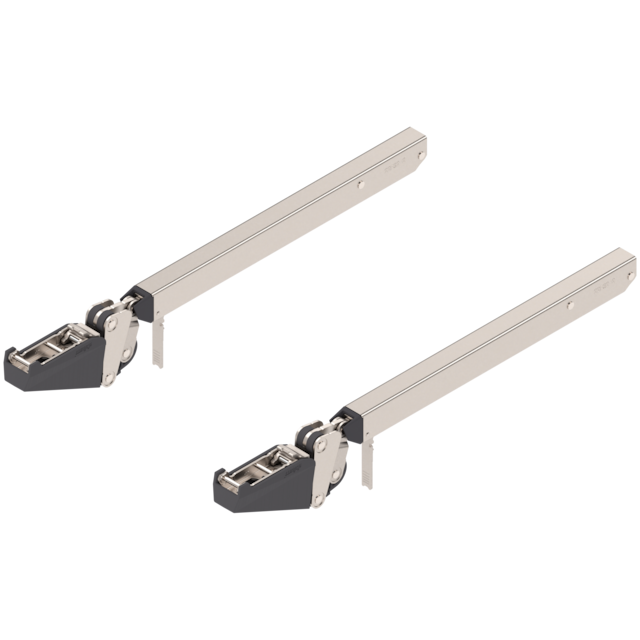

AVENTOS HF top lever
AVENTOS HF top lever
Ident no: 08795903
Part no.: 22F3200 TE-HEB S2 NI
Box qty: 1 pc
  • for cabinet height: 480.0 - 610.0 mm
AVENTOS HF top bi-fold lift system, lever (Set), CH=480-610 mm, symmetrical, Nickel plated
Ident no: 08795903 Part no.: 22F3200 TE-HEB S2 NI Box qty: 1 pc
  • for cabinet height: 480.0 - 610.0 mm
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The lever arm secures the connection between the lift mechanism and the front fixing bracket and ensures stable motion when opening and closing the wall cabinet front.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HF top
lever type
22F320x
min. front height
223.00 mm
max. front height
305.00 mm
