AVENTOS HF top lever

chevron_left Back

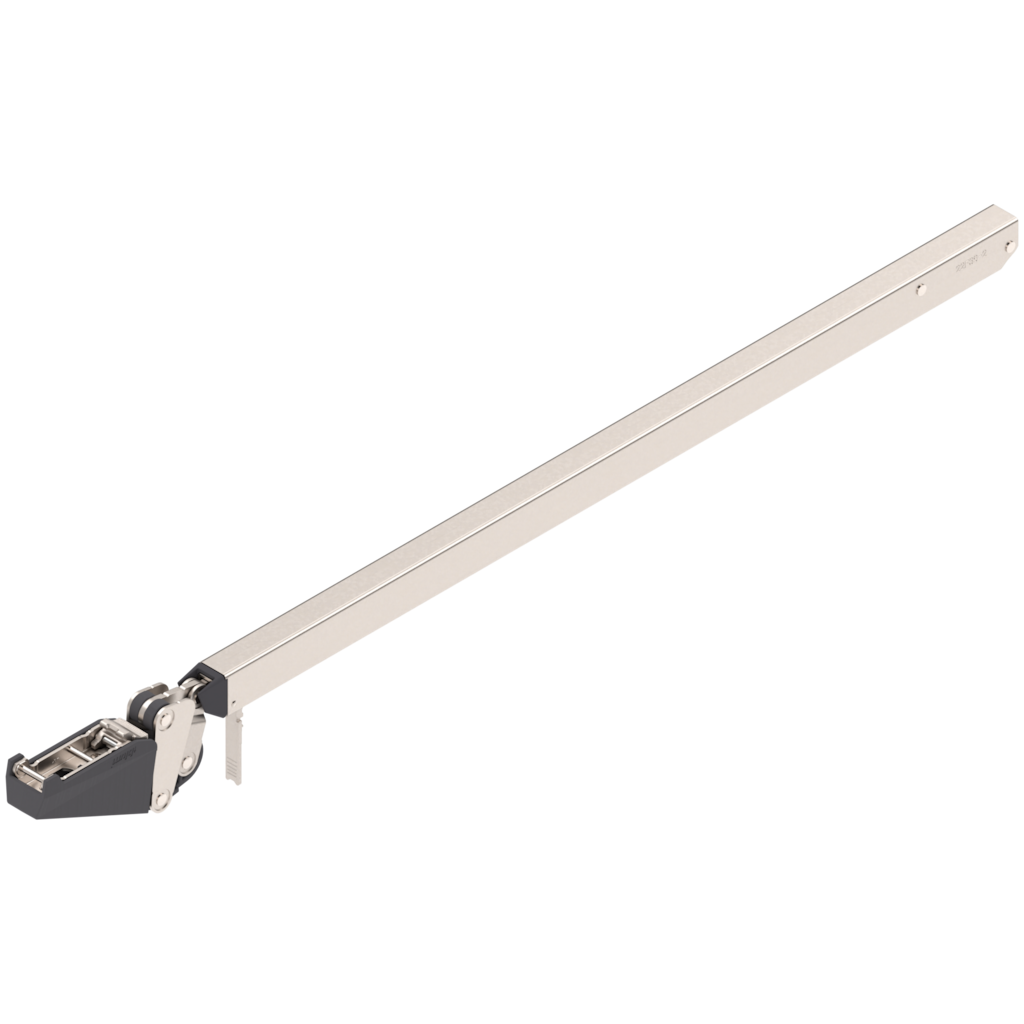

AVENTOS HF top lever
AVENTOS HF top lever
Ident no: 09632647
Part no.: 22F3901 TE-HEB V42 NI
Box qty: 42 pcs
  • for cabinet height: 840.0 - 1200.0 mm
AVENTOS HF top bi-fold lift system, lever, CH=840-1200 mm, symmetrical, Nickel plated
Ident no: 09632647 Part no.: 22F3901 TE-HEB V42 NI Box qty: 42 pcs
  • for cabinet height: 840.0 - 1200.0 mm
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Hebel stellt die Verbindung zwischen Kraftspeicher und Frontbefestigung sicher und sorgt für eine stabile Bewegung beim Öffnen und Schließen der Klappe.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HF top
lever type
22F390x
min. front height
403.00 mm
max. front height
600.00 mm
