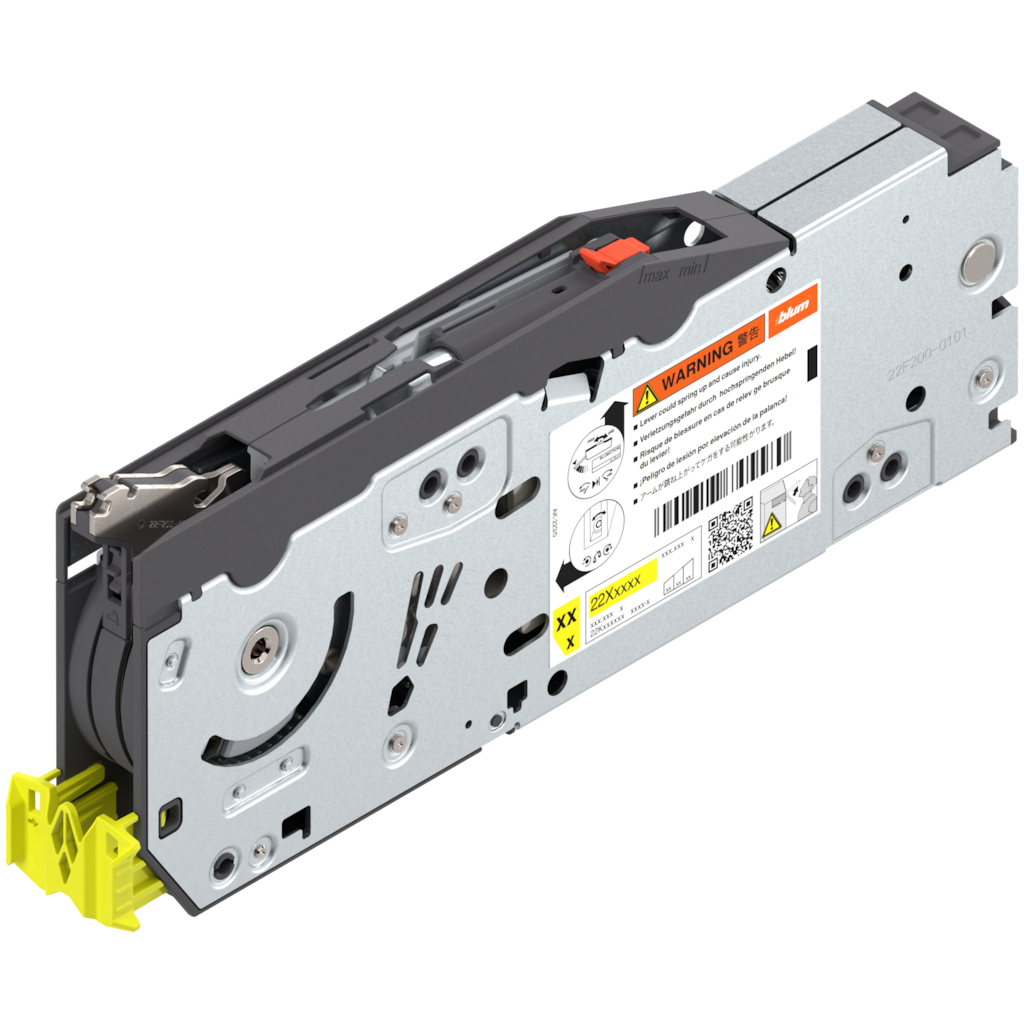

AVENTOS HF top lift mechanism

AVENTOS HF top lift mechanism
AVENTOS HF top lift mechanism
Ident no: 02299866
Part no.: 22F2801 KRAFTSP 16 ZN
Box qty: 16 pcs
  • type: lift mechanism
  • power factor: 10000–19300 (with 2 pcs.)
  • fixing method on the cabinet: with screws

AVENTOS HF top lift mechanism

  • type: lift mechanism
  • power factor: 10000–19300 (with 2 pcs.)
  • fixing method on the cabinet: with screws
Ident no: 02299866 Part no.: 22F2801 KRAFTSP 16 ZN Box qty: 16 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
lift mechanism
lift system
AVENTOS HF top
suitable for lift system type
HF top
power factor
10000–19300 (with 2 pcs.)
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
