AVENTOS HF top lift mechanism

chevron_left Back

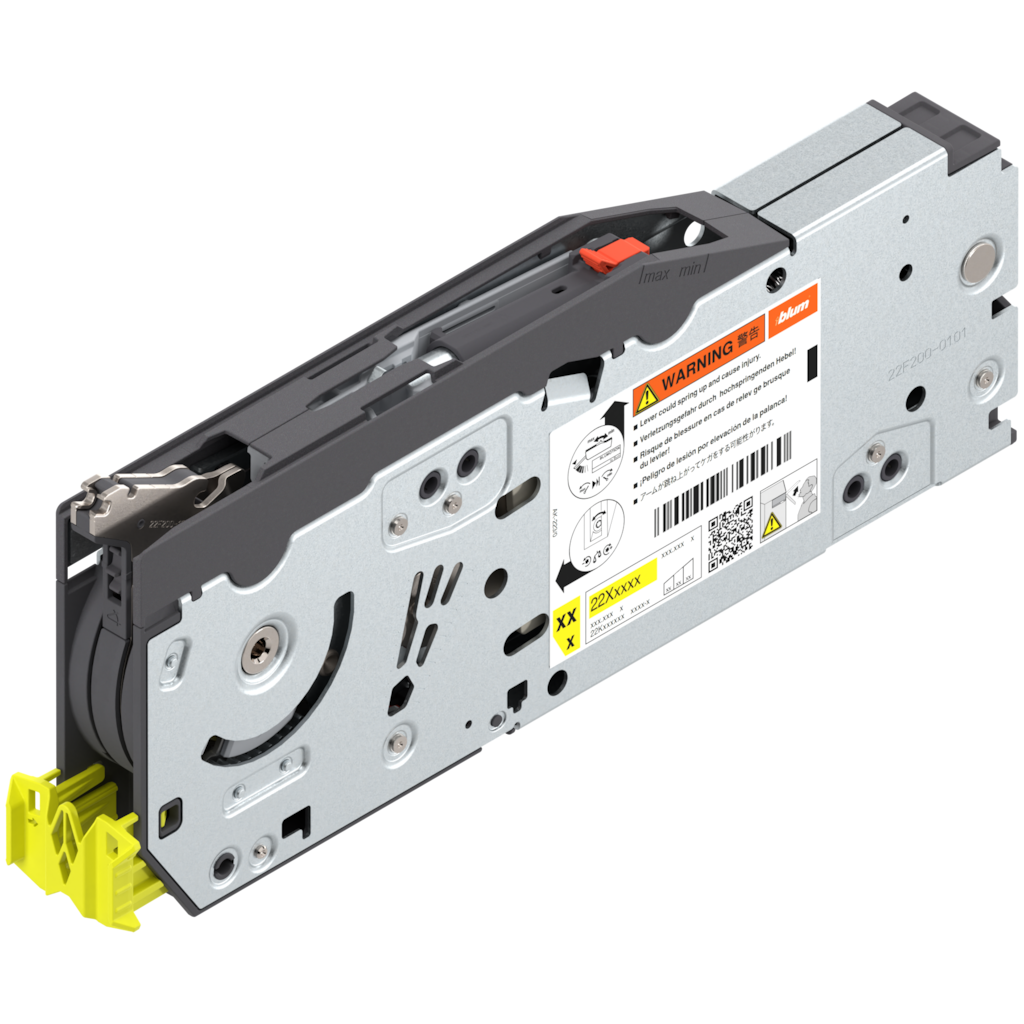

AVENTOS HF top lift mechanism
AVENTOS HF top lift mechanism
Ident no: 02608127
Part no.: 22F2501 KRAFTSP 16 ZN
Box qty: 16 pcs
  • type: lift mechanism
  • power factor: 2700–13500 (with 2 pcs.)
  • fixing method on the cabinet: with screws
AVENTOS HF top bi-fold lift system, lift mechanism, PF=2700-13500 (with 2 pcs.), for screwing on, suitable for SERVO-DRIVE, Zinc plated
Ident no: 02608127 Part no.: 22F2501 KRAFTSP 16 ZN Box qty: 16 pcs
  • type: lift mechanism
  • power factor: 2700–13500 (with 2 pcs.)
  • fixing method on the cabinet: with screws
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Der Kraftspeicher sorgt für leichtes und komfortables Öffnen von Klappen. Dieser dient dazu, das Gewicht der Front auszugleichen und diese in jeder gewünschten Position zu halten. Es handelt sich um ein mechanisches Bauteil, das an der Korpusseite befestigt wird.
description Technical data expand_more

Technical data

type
lift mechanism
lift system
AVENTOS HF top
suitable for lift system type
HF top
power factor
2700–13500 (with 2 pcs.)
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
