AVENTOS HF top lift mechanism set

chevron_left Back

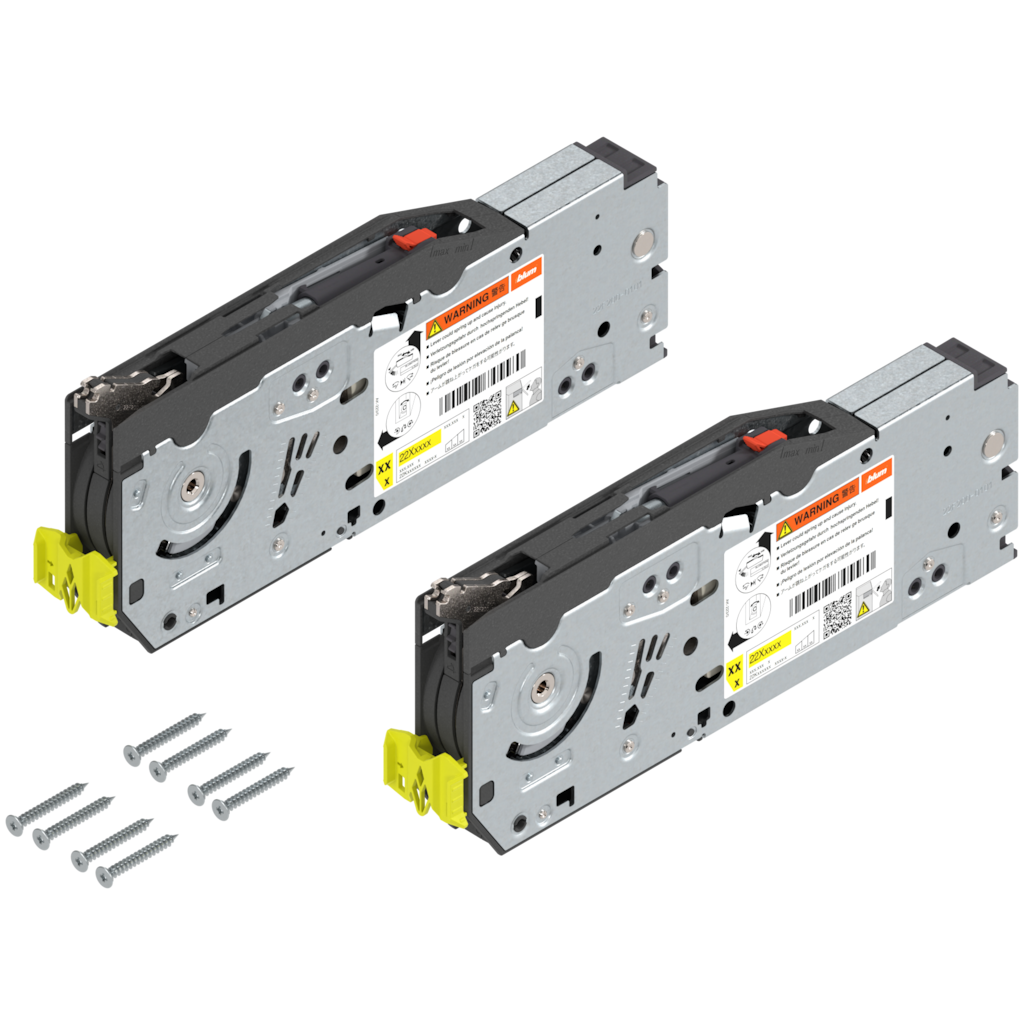

AVENTOS HF top lift mechanism set
AVENTOS HF top lift mechanism set
Ident no: 01755700
Part no.: 22F2800 KRAFTSP S2 ZN
Box qty: 1 pc
  • type: lift mechanism set
  • power factor: 10000–19300 (with 2 pcs.)
  • fixing method on the cabinet: with screws
AVENTOS HF top bi-fold lift system, lift mechanism (Set), PF=10000-19300 (with 2 pcs.), for screwing on, suitable for SERVO-DRIVE, Zinc plated
Ident no: 01755700 Part no.: 22F2800 KRAFTSP S2 ZN Box qty: 1 pc
  • type: lift mechanism set
  • power factor: 10000–19300 (with 2 pcs.)
  • fixing method on the cabinet: with screws
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The lift mechanism ensures convenient, easy opening of wall cabinet fronts. It counterbalances the weight of the front and holds it open in any position you wish. It is a mechanical component, which is mounted on the cabinet side.
description Technical data expand_more

Technical data

type
lift mechanism set
lift system
AVENTOS HF top
suitable for lift system type
HF top
power factor
10000–19300 (with 2 pcs.)
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
