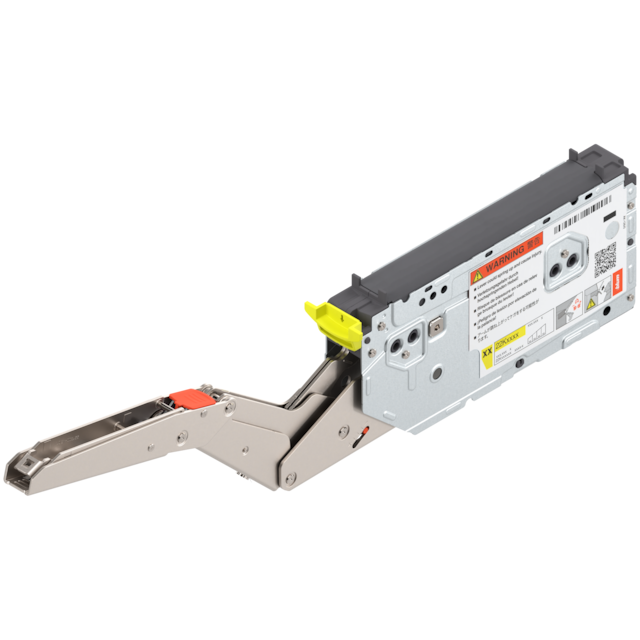

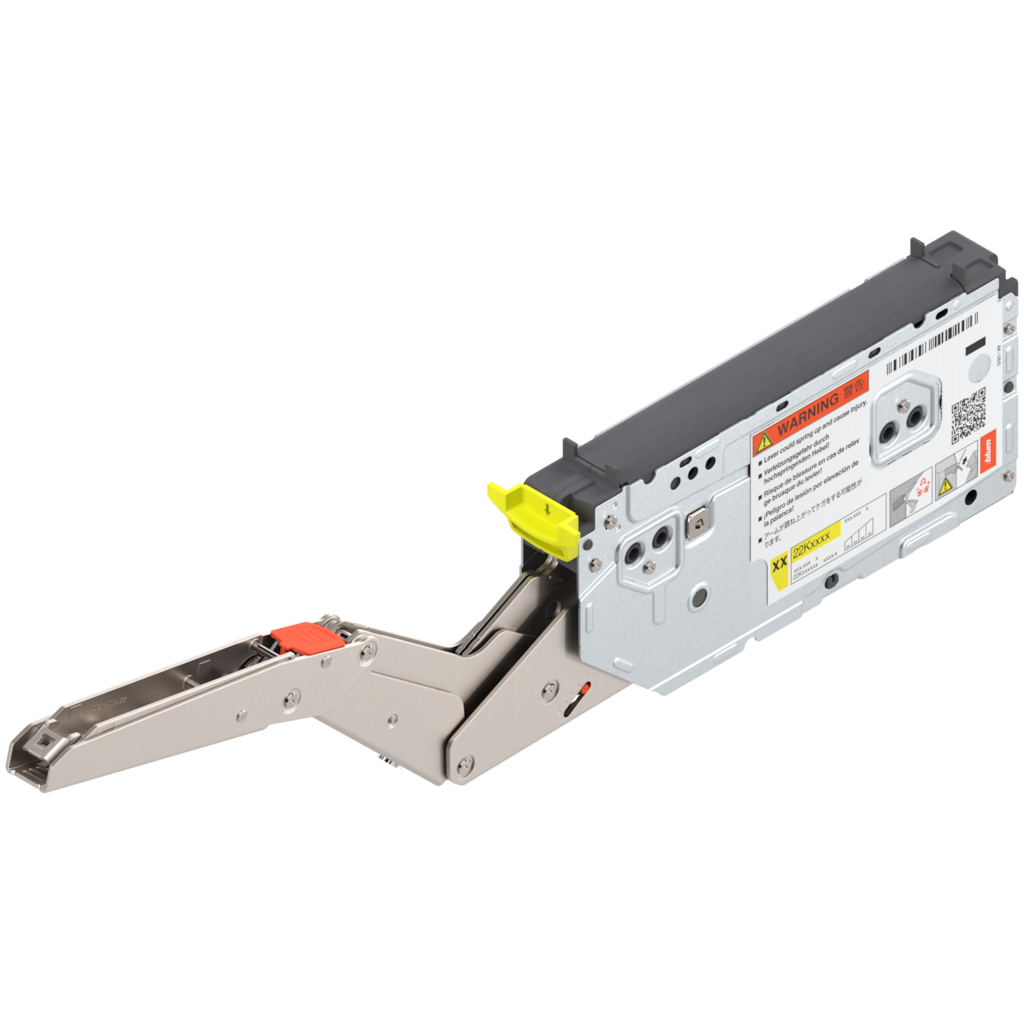

AVENTOS HK top lift mechanism suitable for TIP-ON

AVENTOS HK top lift mechanism suitable for TIP-ON
AVENTOS HK top lift mechanism suitable for TIP-ON
Ident no: 05691973
Part no.: 22K2701T KRAFTSP 20 ZN
Box qty: 20 pcs
  • type: lift mechanism
  • suitable for lift system type: HK top
  • power factor: 1730–5200 (with 2 pcs.)
  • motion technology: suitable for TIP-ON
  • side position: left/right
  • colour/surface: zinc plated
  • fixing method on the cabinet: with screws

AVENTOS HK top lift mechanism suitable for TIP-ON

  • type: lift mechanism
  • suitable for lift system type: HK top
  • power factor: 1730–5200 (with 2 pcs.)
  • motion technology: suitable for TIP-ON
  • side position: left/right
  • colour/surface: zinc plated
  • fixing method on the cabinet: with screws
Ident no: 05691973 Part no.: 22K2701T KRAFTSP 20 ZN Box qty: 20 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The lift mechanism ensures convenient, easy opening of wall cabinet fronts. It counterbalances the weight of the front and holds it open in any position you wish. It is a mechanical component, which is mounted on the cabinet side.
  • Light operating forces for easy opening irrespective of the front weight
  • Fixed position of the lift mechanism within the cabinet, irrespective of the cabinet height
  • Lever arms are closed so that no parts protrude beyond the cabinet, facilitating internal transport
  • Variable front stop after adjusting the lift mechanism to the exact weight of the front
  • Integrated safety mechanism prevents unintentional opening of the lever arm
  • Easy assembly
  • The integrated and infinitely variable opening angle stop prevents the front from hitting the ceiling
  • With integrated positioning system
  • 3-dimensional front adjustment for a visually perfect gap layout
  • Suitable for the mechanical opening support system TIP-ON
  • Convenient, infinitely variable lift mechanism adjustment from the front
description Technical data expand_more

Technical data

type
lift mechanism
suitable for lift system type
HK top
power factor
1730–5200 (with 2 pcs.)
motion technology
suitable for TIP-ON
side position
left/right
