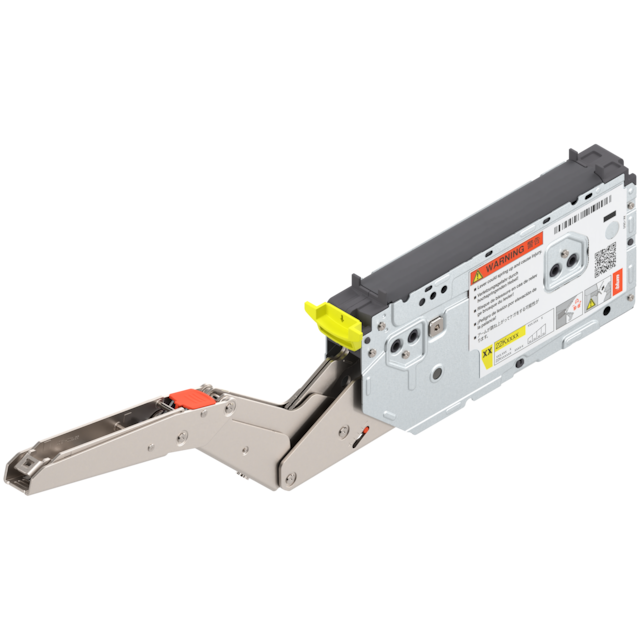

AVENTOS HK top lift mechanism suitable for TIP-ON

AVENTOS HK top lift mechanism suitable for TIP-ON

  • type: lift mechanism
  • suitable for lift system type: HK top
  • power factor: 3200–9000 (with 2 pcs.)
  • motion technology: suitable for TIP-ON
  • side position: left/right
  • colour/surface: zinc plated
  • fixing method on the cabinet: with screws
Ident no: 06802136 Part no.: 22K2901T KRAFTSP 20 ZN Box qty: 20 pcs
error_outline

Please log in to see prices and availability.

info Product information expand_more

Product information

  • check_circle_outline Integrated safety mechanism prevents unintentional opening of the lever arm
  • check_circle_outline Convenient, infinitely variable lift mechanism adjustment from the front
  • check_circle_outline 3-dimensional front adjustment for a visually perfect gap layout
  • check_circle_outline The integrated and infinitely variable opening angle stop prevents the front from hitting the ceiling
  • check_circle_outline Variable front stop after adjusting the lift mechanism to the exact weight of the front
  • check_circle_outline Light operating forces for easy opening irrespective of the front weight
  • check_circle_outline Easy assembly
  • check_circle_outline Fixed position of the lift mechanism within the cabinet, irrespective of the cabinet height
  • check_circle_outline With integrated positioning system
  • check_circle_outline Lever arms are closed so that no parts protrude beyond the cabinet, facilitating internal transport
The lift mechanism ensures convenient, easy opening of wall cabinet fronts. It counterbalances the weight of the front and holds it open in any position you wish. It is a mechanical component, which is mounted on the cabinet side.
description Technical data expand_more

Technical data

type
lift mechanism
lift system
AVENTOS HK top
suitable for lift system type
HK top
power factor
3200–9000 (with 2 pcs.)
motion technology
suitable for TIP-ON
