AVENTOS HK-XS front fixing bracket

chevron_left Back

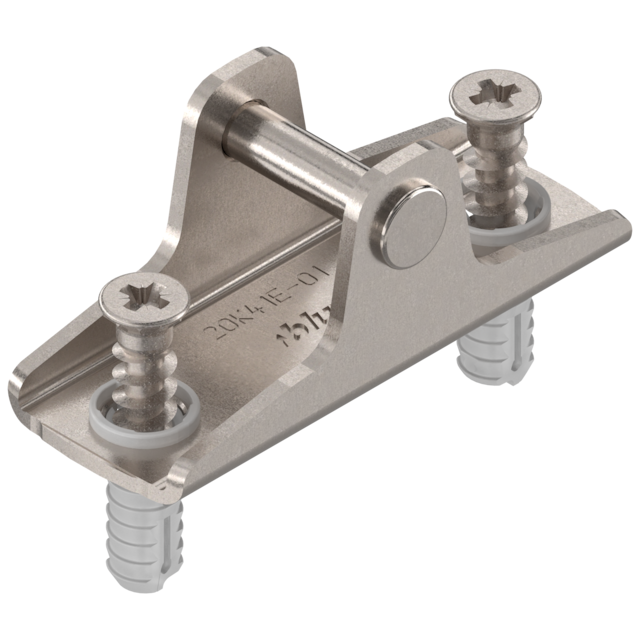

AVENTOS HK-XS front fixing bracket
AVENTOS HK-XS front fixing bracket
Ident no: 05697170
Part no.: 20K41E1 FRO-B V200 NI
Box qty: 200 pcs
  • Front fixing: with EXPANDO split dowels
AVENTOS HK-XS stay lift, front fixing bracket for wooden fronts, EXPANDO, Nickel plated
Ident no: 05697170 Part no.: 20K41E1 FRO-B V200 NI Box qty: 200 pcs
  • Front fixing: with EXPANDO split dowels
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
front fixing bracket
suitable for lift system type
HK-XS
Front fixing
with EXPANDO split dowels
fixing method
with EXPANDO split dowels
material
steel
