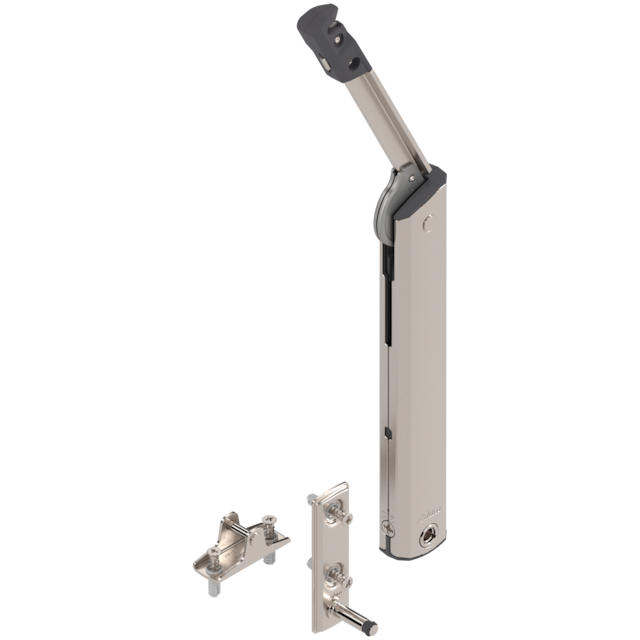

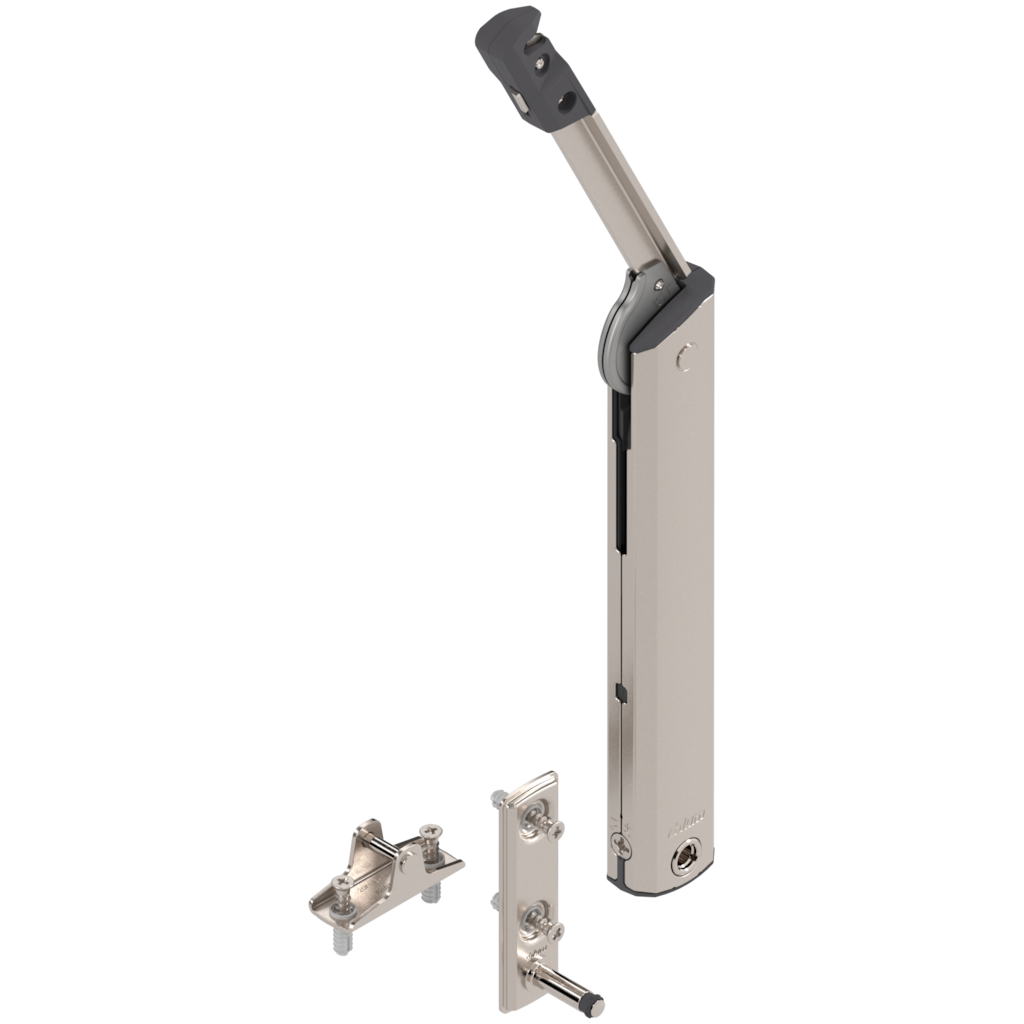

AVENTOS HK-XS lift mechanism set suitable for TIP-ON

chevron_left Back
AVENTOS HK-XS lift mechanism set suitable for TIP-ON
AVENTOS HK-XS lift mechanism set suitable for TIP-ON
Ident no: 38015552
Part no.: 20K1500T KRA+Z NZ M NI
Box qty: 1 pc
  • type: lift mechanism set
  • suitable for lift system type: HK-XS
  • power factor: 800–1800 (one-sided lift mechanism)
  • motion technology: suitable for TIP-ON
  • side position: left/right
  • colour/surface: nickel plated
  • fixing method on the cabinet: with screws
AVENTOS HK-XS stay lift, lift mechanism (Set), PF=800–1800 (one-sided lift mechanism), for screwing on, for TIP-ON, Nickel plated
Ident no: 38015552 Part no.: 20K1500T KRA+Z NZ M NI Box qty: 1 pc
  • type: lift mechanism set
  • suitable for lift system type: HK-XS
  • power factor: 800–1800 (one-sided lift mechanism)
  • motion technology: suitable for TIP-ON
  • side position: left/right
  • colour/surface: nickel plated
  • fixing method on the cabinet: with screws
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The lift mechanism ensures convenient, easy opening of wall cabinet fronts. It counterbalances the weight of the front and holds it open in any position you wish. It is a mechanical component, which is mounted on the cabinet side.
description Technical data expand_more

Technical data

type
lift mechanism set
lift system
AVENTOS HK-XS
suitable for lift system type
HK-XS
power factor
800–1800 (one-sided lift mechanism)
motion technology
suitable for TIP-ON
