AVENTOS HK-XS lift mechanism suitable for TIP-ON

chevron_left Back

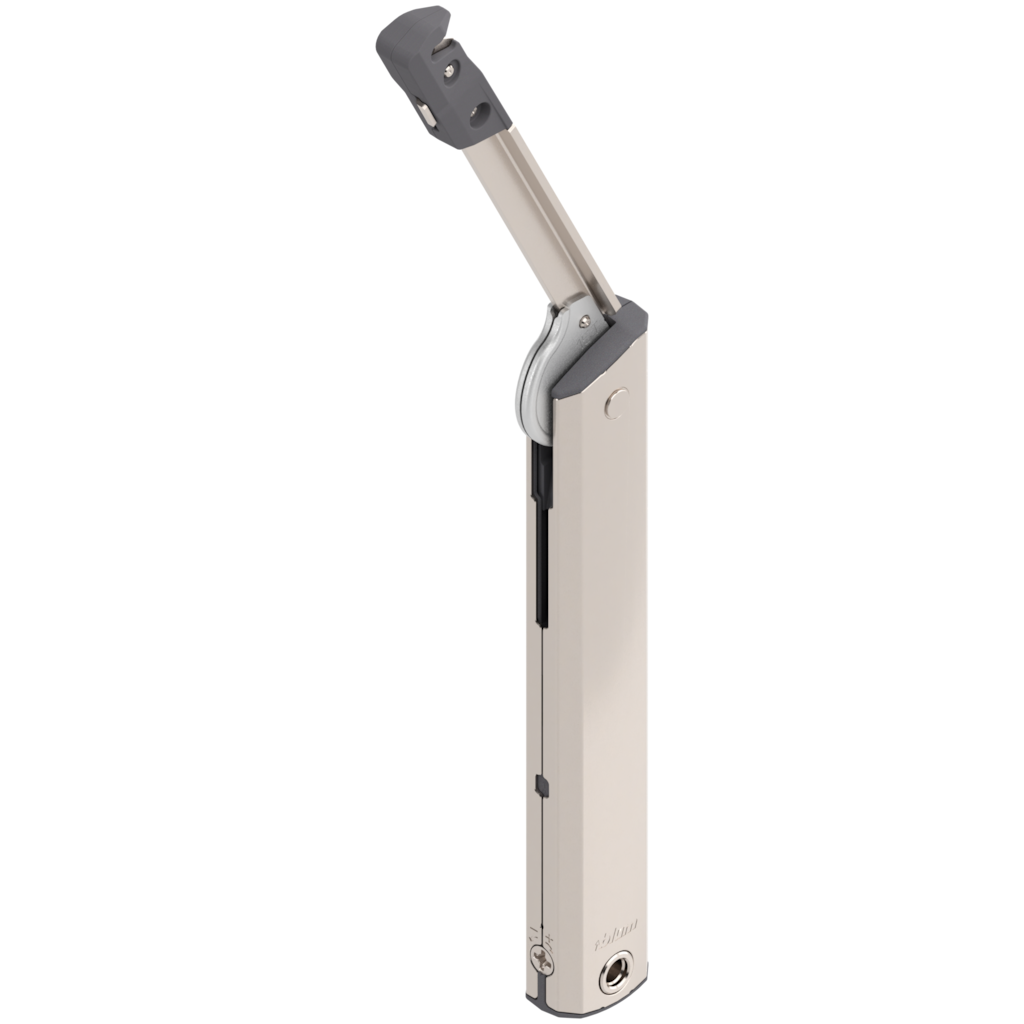

AVENTOS HK-XS lift mechanism suitable for TIP-ON
AVENTOS HK-XS lift mechanism suitable for TIP-ON
Ident no.: 08041284
Part no.: 20K1501T KRAFTSP 40 NI
Box qty: 40 pcs
  • type: lift mechanism
  • power factor: 800–1600 (one-sided lift mechanism)
  • motion technology: suitable for TIP-ON
  • fixing method on the cabinet: clip-on
AVENTOS HK-XS stay lift, lift mechanism, PF=800–1600 (one-sided lift mechanism), for TIP-ON, Nickel plated
Ident no.: 08041284 Part no.: 20K1501T KRAFTSP 40 NI Box qty: 40 pcs
  • type: lift mechanism
  • power factor: 800–1600 (one-sided lift mechanism)
  • motion technology: suitable for TIP-ON
  • fixing method on the cabinet: clip-on
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
  • handyman Assembly instructions
build Technical data expand_more

Technical data

type
lift mechanism
lift system
AVENTOS HK-XS
suitable for lift system type
HK-XS
power factor
800–1600 (one-sided lift mechanism)
motion technology
suitable for TIP-ON
