AVENTOS HL lever

chevron_left Back

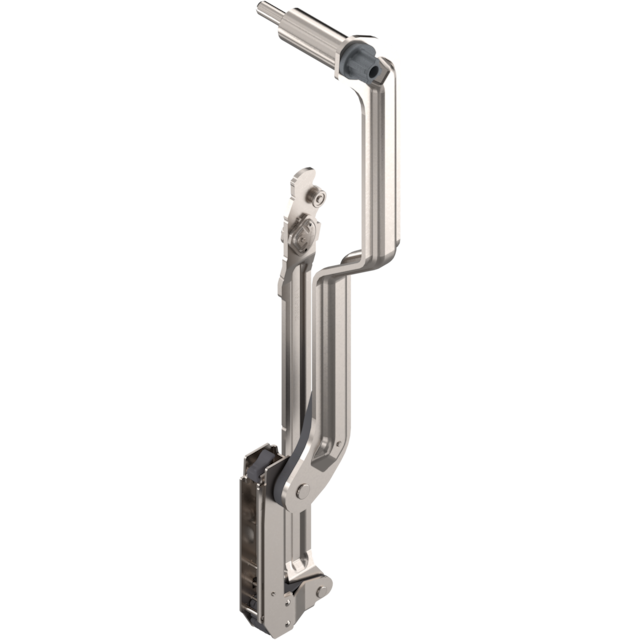

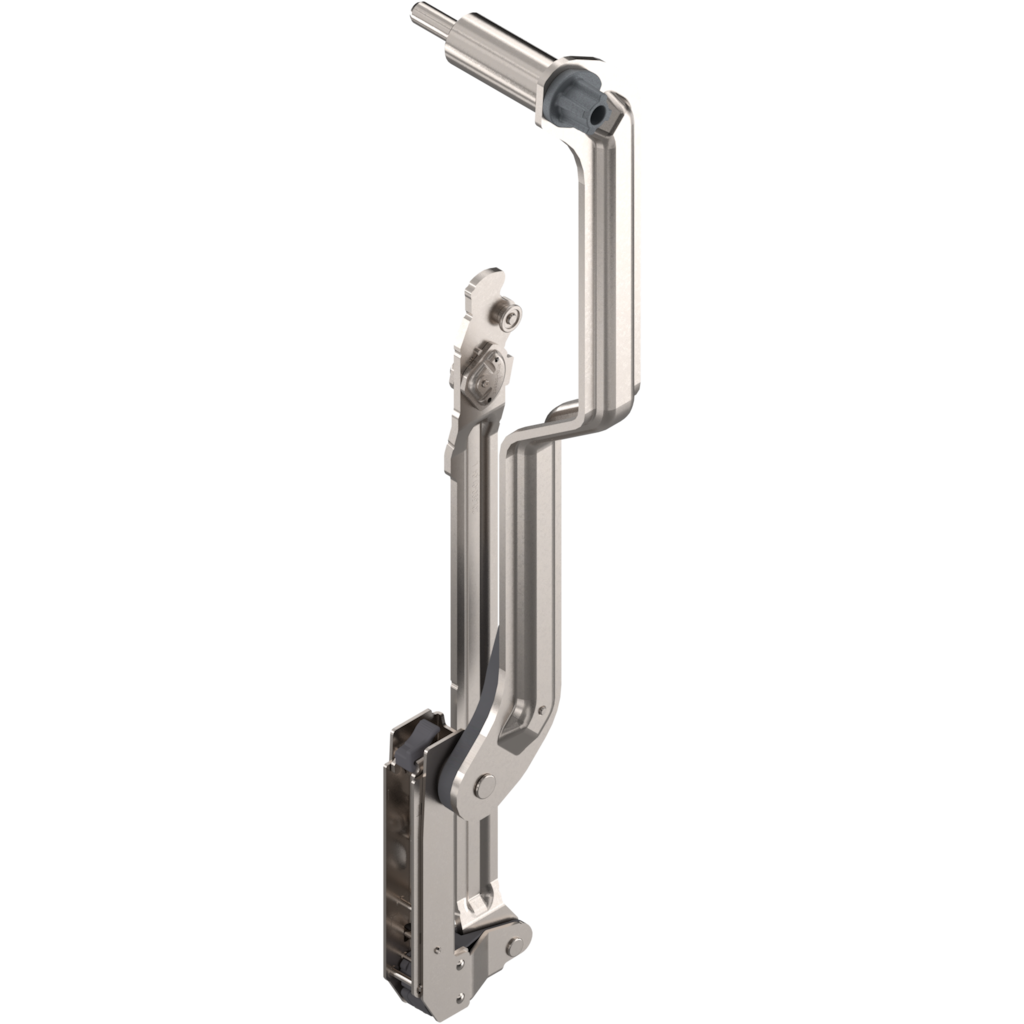

AVENTOS HL lever
AVENTOS HL lever
Ident no: 09618963
Part no.: 21L3901.01HEBEL L V5 NI
Box qty: 5 pcs
  • min. front height: 450.00 mm
  • max. front height: 580.00 mm
  • side position: left
AVENTOS HL lift up, lever, CH=450-580 mm, left, for SERVO-DRIVE, Nickel plated
Ident no: 09618963 Part no.: 21L3901.01HEBEL L V5 NI Box qty: 5 pcs
  • min. front height: 450.00 mm
  • max. front height: 580.00 mm
  • side position: left
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Hebel stellt die Verbindung zwischen Kraftspeicher und Frontbefestigung sicher und sorgt für eine stabile Bewegung beim Öffnen und Schließen der Klappe.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HL
lever type
21L390x
min. front height
450.00 mm
max. front height
580.00 mm
