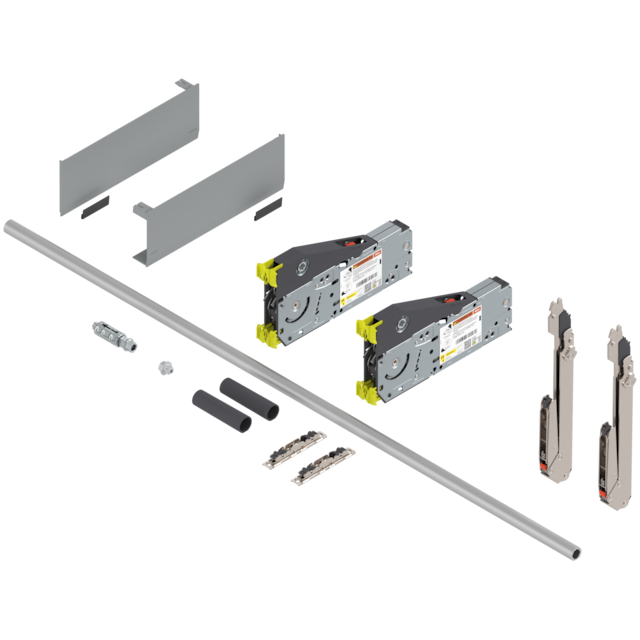

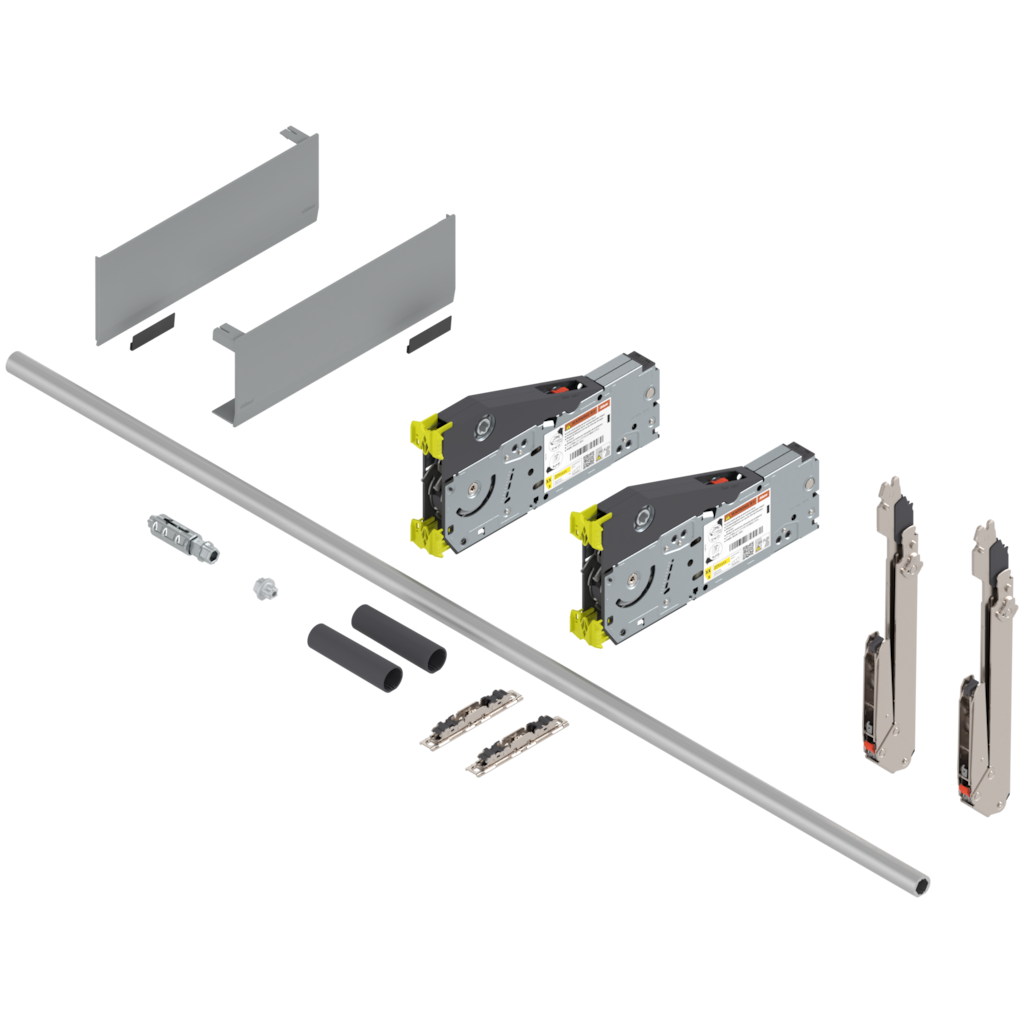

AVENTOS HL top complete set

chevron_left Back
AVENTOS HL top complete set
AVENTOS HL top lift up (set), CH/FW: 390-540 mm (2.00-12.25 kg), suitable for SERVO-DRIVE, Light grey/Dark grey
Ident no: 01103555
Part no.: 22L1508 AV-HL GRV1HG/T
Box qty: 1 pc
  • motion technology: integrated BLUMOTION / suitable for SERVO-DRIVE
  • fixing method on the cabinet: with screws
  • colour/surface: zinc plated
  • for cabinet height: 390.0 - 580.0 mm
  • for front weight: 2.00 - 12.25 kg

AVENTOS HL top lift up (set), CH/FW: 390-540 mm (2.00-12.25 kg), suitable for SERVO-DRIVE, Light grey/Dark grey

Ident no: 01103555 Part no.: 22L1508 AV-HL GRV1HG/T Box qty: 1 pc
  • motion technology: integrated BLUMOTION / suitable for SERVO-DRIVE
  • fixing method on the cabinet: with screws
  • colour/surface: zinc plated
  • for cabinet height: 390.0 - 580.0 mm
  • for front weight: 2.00 - 12.25 kg
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Mit dem Komplett-Set lässt sich das Klappensystem AVENTOS HL top realisieren. Mit der Hochliftklappe AVENTOS HL top wird die Front parallel zum Korpus nach oben bewegt. AVENTOS HL top bietet die ideale Lösung für Hoch- und Oberschränke mit darüber liegenden Fronten, zum Beispiel zum Verstecken von elektrischen Geräten. Wählen Sie zwischen zwei Arten der Kraftspeicherbefestigung: Über integrierte Systemschrauben oder mittels Positionsfindung. AVENTOS HL top bietet komfortable Bedienung und sorgt für ein harmonisches Fugenbild. Die Montage erfolgt weitestgehend werkzeuglos.
description Technical data expand_more

Technical data

lift system
AVENTOS HL top
type
complete set
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
fixing method on the cabinet
with screws
colour/surface
zinc plated
