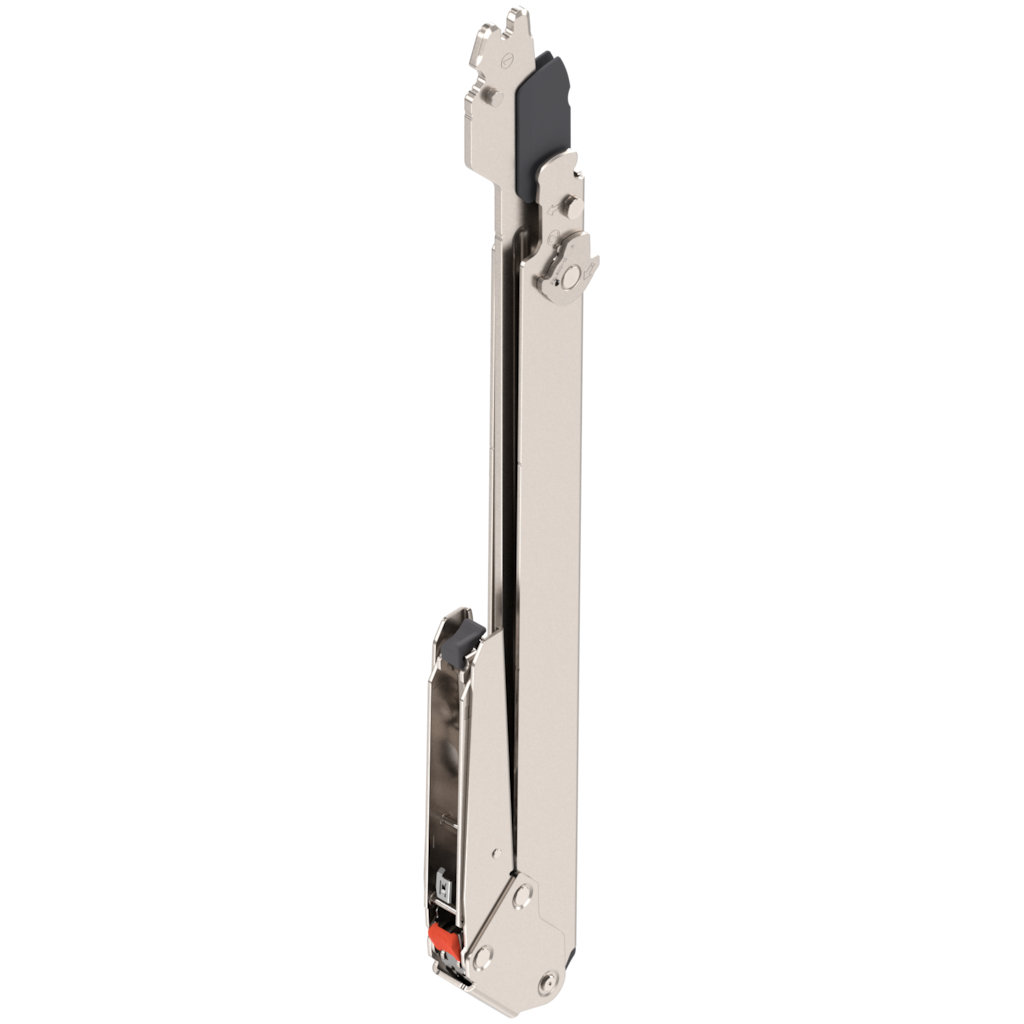

AVENTOS HL top lever

AVENTOS HL top lever
AVENTOS HL top lever
Ident no: 02834699
Part no.: 22L3901 HEBEL V12 NI
Box qty: 12 pcs
  • for cabinet height: 480.0 - 580.0 mm
  • for front weight: 2.50 - 14.00 kg

AVENTOS HL top lever

  • for cabinet height: 480.0 - 580.0 mm
  • for front weight: 2.50 - 14.00 kg
Ident no: 02834699 Part no.: 22L3901 HEBEL V12 NI Box qty: 12 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HL top
lever type
22L390x
min. front height
480.00 mm
max. front height
580.00 mm
