AVENTOS HL top lever

chevron_left Back

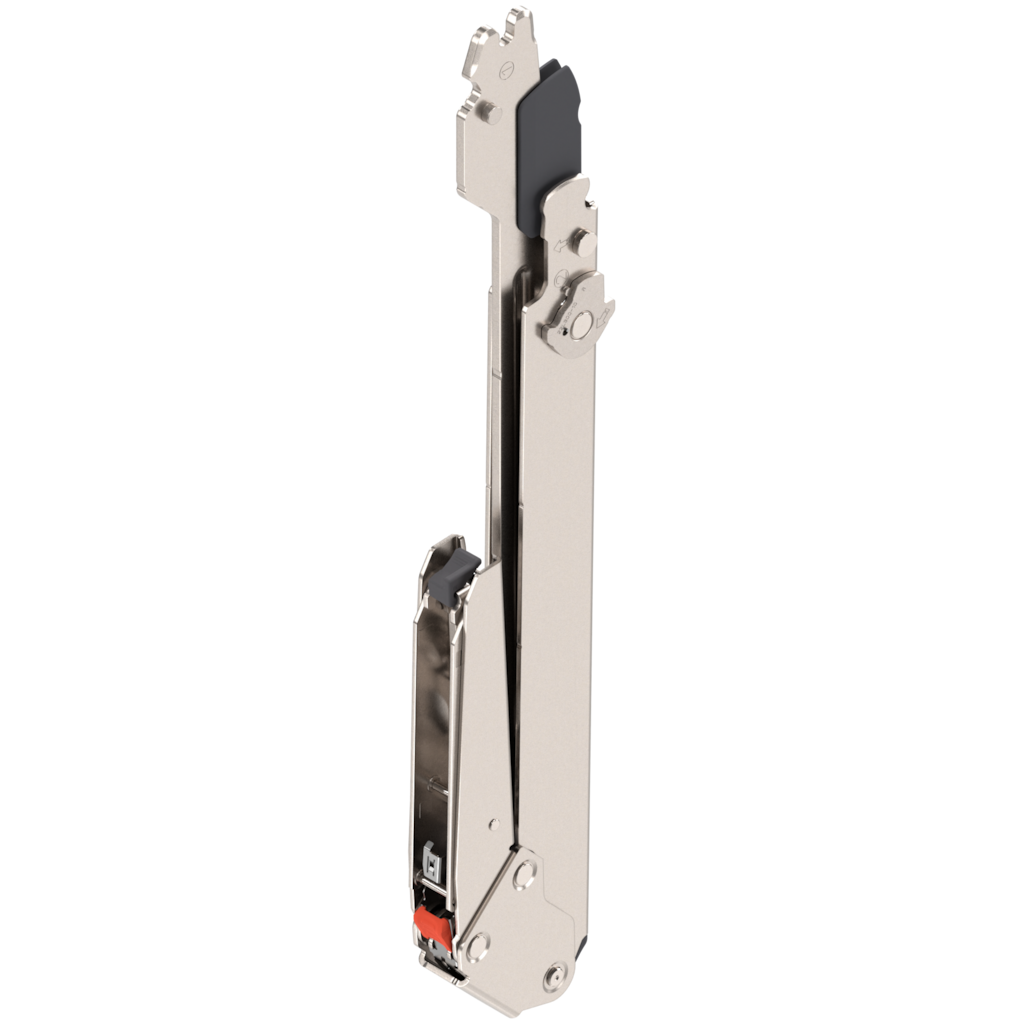

AVENTOS HL top lever
AVENTOS HL top lift up, lever, CH=390-540 mm, symmetrical, Nickel plated
Ident no: 04213609
Part no.: 22L3801 HEBEL V12 NI
Box qty: 12 pcs
  • for cabinet height: 390.0 - 540.0 mm
  • for front weight: 2.00 - 12.25 kg

AVENTOS HL top lift up, lever, CH=390-540 mm, symmetrical, Nickel plated

Ident no: 04213609 Part no.: 22L3801 HEBEL V12 NI Box qty: 12 pcs
  • for cabinet height: 390.0 - 540.0 mm
  • for front weight: 2.00 - 12.25 kg
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Hebel stellt die Verbindung zwischen Kraftspeicher und Frontbefestigung sicher und sorgt für eine stabile Bewegung beim Öffnen und Schließen der Klappe.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HL top
lever type
22L380x
min. front height
390.00 mm
max. front height
540.00 mm
