AVENTOS HL top lever

chevron_left Back
AVENTOS HL top lever
AVENTOS HL top lever
Ident no: 04889829
Part no.: 22L3900 HEBEL S2 NI
Box qty: 1 pc
  • for cabinet height: 480.0 - 580.0 mm
  • for front weight: 2.50 - 14.00 kg

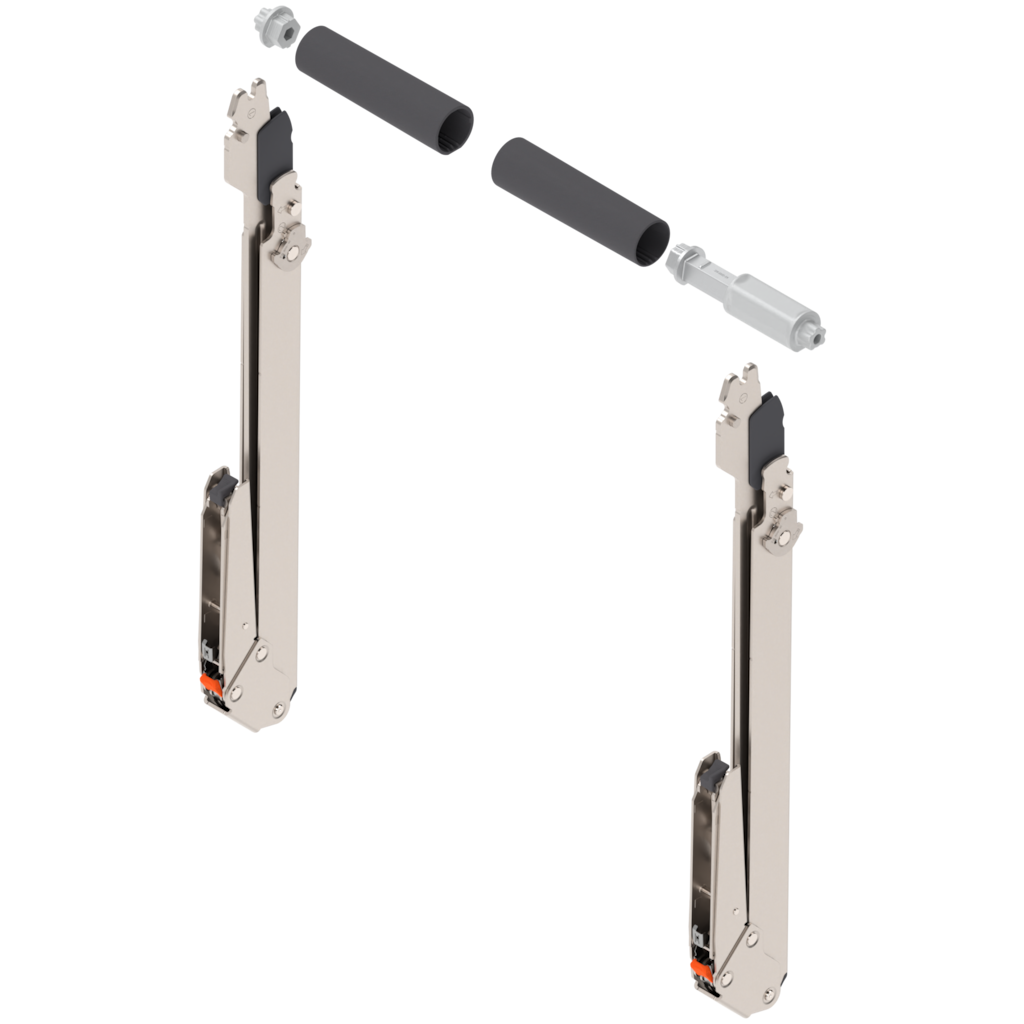

AVENTOS HL top lift up, lever (Set), CH=480-580 mm, symmetrical, Nickel plated
Ident no: 04889829 Part no.: 22L3900 HEBEL S2 NI Box qty: 1 pc
  • for cabinet height: 480.0 - 580.0 mm
  • for front weight: 2.50 - 14.00 kg
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The lever arm secures the connection between the lift mechanism and the front fixing bracket and ensures stable motion when opening and closing the wall cabinet front.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HL top
lever type
22L390x
min. front height
480.00 mm
max. front height
580.00 mm
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.
