AVENTOS HL top lever

chevron_left Back

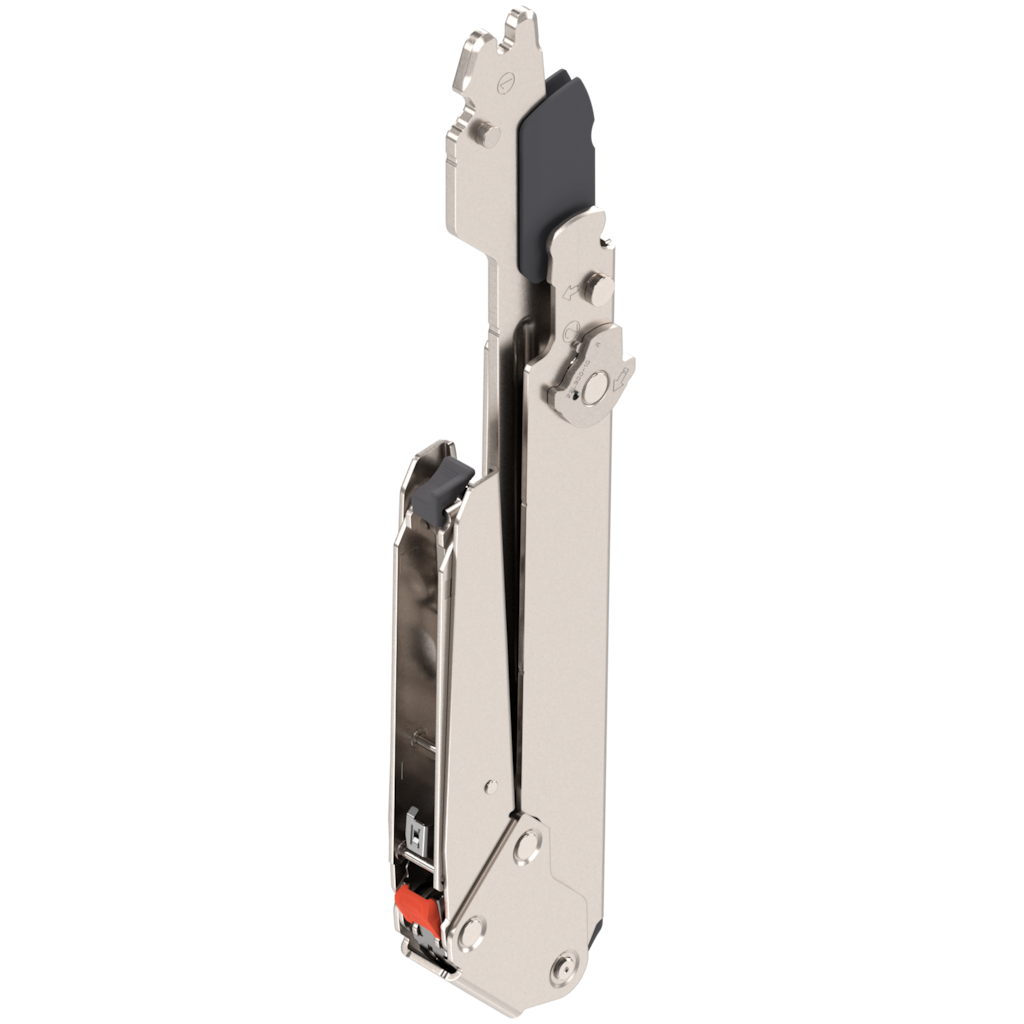

AVENTOS HL top lever
AVENTOS HL top lever
Ident no: 07246828
Part no.: 22L3501 HEBEL V12 NI
Box qty: 12 pcs
  • for cabinet height: 340.0 - 389.0 mm
  • for front weight: 1.75 - 10.00 kg
AVENTOS HL top lift up, lever, CH=340-389 mm, symmetrical, Nickel plated
Ident no: 07246828 Part no.: 22L3501 HEBEL V12 NI Box qty: 12 pcs
  • for cabinet height: 340.0 - 389.0 mm
  • for front weight: 1.75 - 10.00 kg
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Hebel stellt die Verbindung zwischen Kraftspeicher und Frontbefestigung sicher und sorgt für eine stabile Bewegung beim Öffnen und Schließen der Klappe.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HL top
lever type
22L350x
min. front height
340.00 mm
max. front height
389.00 mm
