AVENTOS HL top lever

chevron_left Back

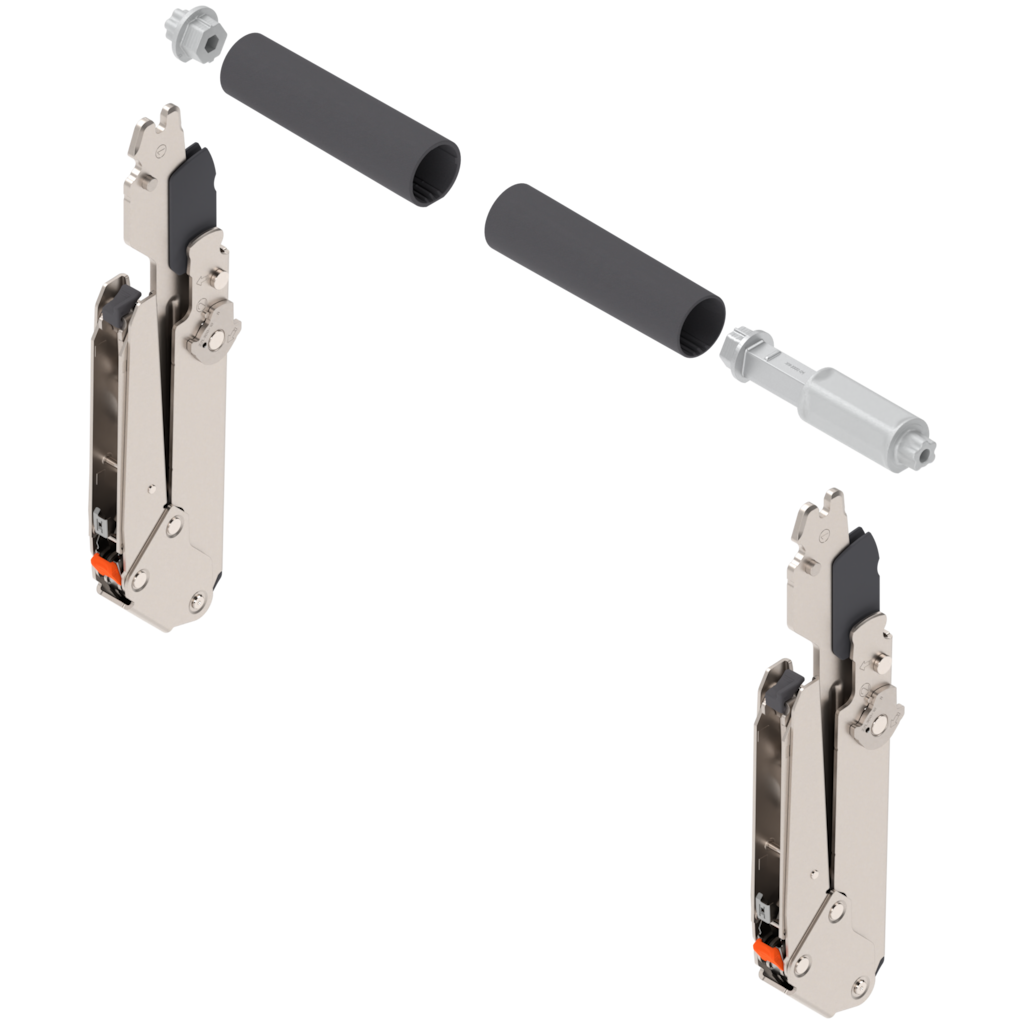

AVENTOS HL top lever
AVENTOS HL top lever
Ident no: 08484930
Part no.: 22L3200 HEBEL S2 NI
Box qty: 1 pc
  • for cabinet height: 300.0 - 340.0 mm
  • for front weight: 1.50 - 9.00 kg
AVENTOS HL top lift up, lever (Set), CH=300-340 mm, symmetrical, Nickel plated
Ident no: 08484930 Part no.: 22L3200 HEBEL S2 NI Box qty: 1 pc
  • for cabinet height: 300.0 - 340.0 mm
  • for front weight: 1.50 - 9.00 kg
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The lever arm secures the connection between the lift mechanism and the front fixing bracket and ensures stable motion when opening and closing the wall cabinet front.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HL top
lever type
22L320x
min. front height
268.00 mm
max. front height
340.00 mm
