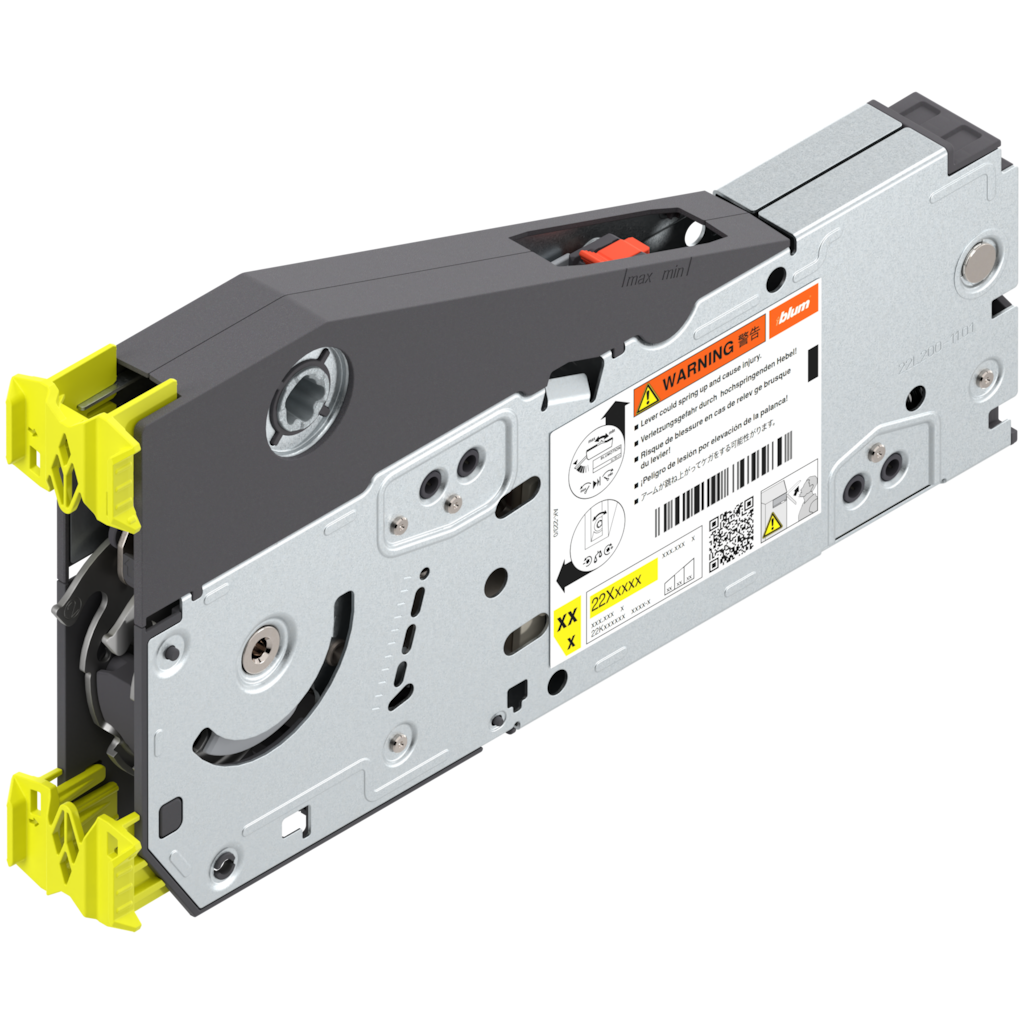

AVENTOS HL top lift mechanism

AVENTOS HL top lift mechanism
AVENTOS HL top lift mechanism
Ident no: 01635182
Part no.: 22L2501 KRAFTSP 16 ZN
Box qty: 16 pcs
  • type: lift mechanism
  • fixing method on the cabinet: with screws
  • for cabinet height: 390.0 - 580.0 mm

AVENTOS HL top lift mechanism

  • type: lift mechanism
  • fixing method on the cabinet: with screws
  • for cabinet height: 390.0 - 580.0 mm
Ident no: 01635182 Part no.: 22L2501 KRAFTSP 16 ZN Box qty: 16 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
lift mechanism
lift system
AVENTOS HL top
suitable for lift system type
HL top
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
side position
left/right
