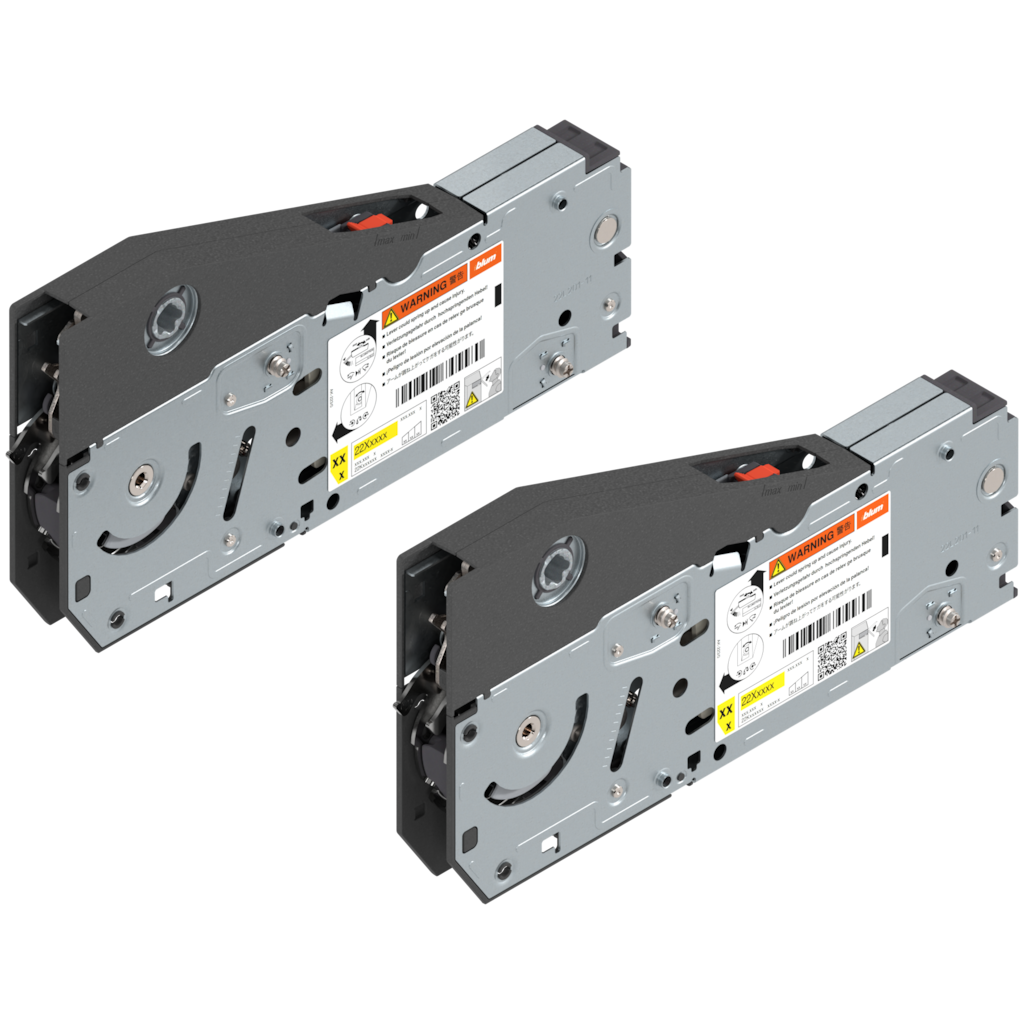

AVENTOS HL top lift mechanism set

AVENTOS HL top lift mechanism set
AVENTOS HL top lift mechanism set
Ident no: 03220181
Part no.: 22L2510 KRAFTSP S2 ZN
Box qty: 1 pc
  • type: lift mechanism set
  • fixing method on the cabinet: with pre-mounted system screws
  • for cabinet height: 390.0 - 580.0 mm

AVENTOS HL top lift mechanism set

  • type: lift mechanism set
  • fixing method on the cabinet: with pre-mounted system screws
  • for cabinet height: 390.0 - 580.0 mm
Ident no: 03220181 Part no.: 22L2510 KRAFTSP S2 ZN Box qty: 1 pc
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
lift mechanism set
lift system
AVENTOS HL top
suitable for lift system type
HL top
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
side position
left/right
