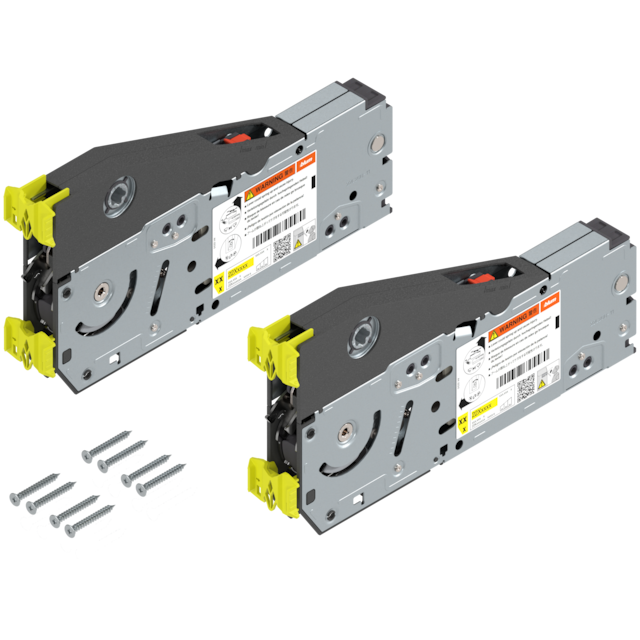

AVENTOS HL top lift mechanism set

AVENTOS HL top lift mechanism set
AVENTOS HL top lift mechanism set
Ident no: 06119711
Part no.: 22L2500 KRAFTSP S2 ZN
Box qty: 1 pc
  • type: lift mechanism set
  • fixing method on the cabinet: with screws
  • for cabinet height: 390.0 - 580.0 mm

AVENTOS HL top lift mechanism set

  • type: lift mechanism set
  • fixing method on the cabinet: with screws
  • for cabinet height: 390.0 - 580.0 mm
Ident no: 06119711 Part no.: 22L2500 KRAFTSP S2 ZN Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The lift mechanism ensures convenient, easy opening of wall cabinet fronts. It counterbalances the weight of the front and holds it open in any position you wish. It is a mechanical component, which is mounted on the cabinet side.
  • Light operating forces for easy opening irrespective of the front weight
  • Fixed position of the lift mechanism within the cabinet, irrespective of the cabinet height
  • Lift mechanism with integrated positioning system
  • Soft and effortless closing thanks to the integrated BLUMOTION soft-close mechanism, regardless of the weight of the front and closing speed
  • Variable front stop after adjusting the lift mechanism to the exact weight of the front
  • Easy assembly
  • Integrated BLUMOTION adjustment
  • Suitable for the SERVO-DRIVE electrical opening support system
  • Convenient, infinitely variable lift mechanism adjustment from the front
description Technical data expand_more

Technical data

type
lift mechanism set
fixing method on the cabinet
with screws
for cabinet height
390.0 - 580.0 mm
lift system
AVENTOS HL top
suitable for lift system type
HL top
