AVENTOS HL top screw-on bracket

chevron_left Back

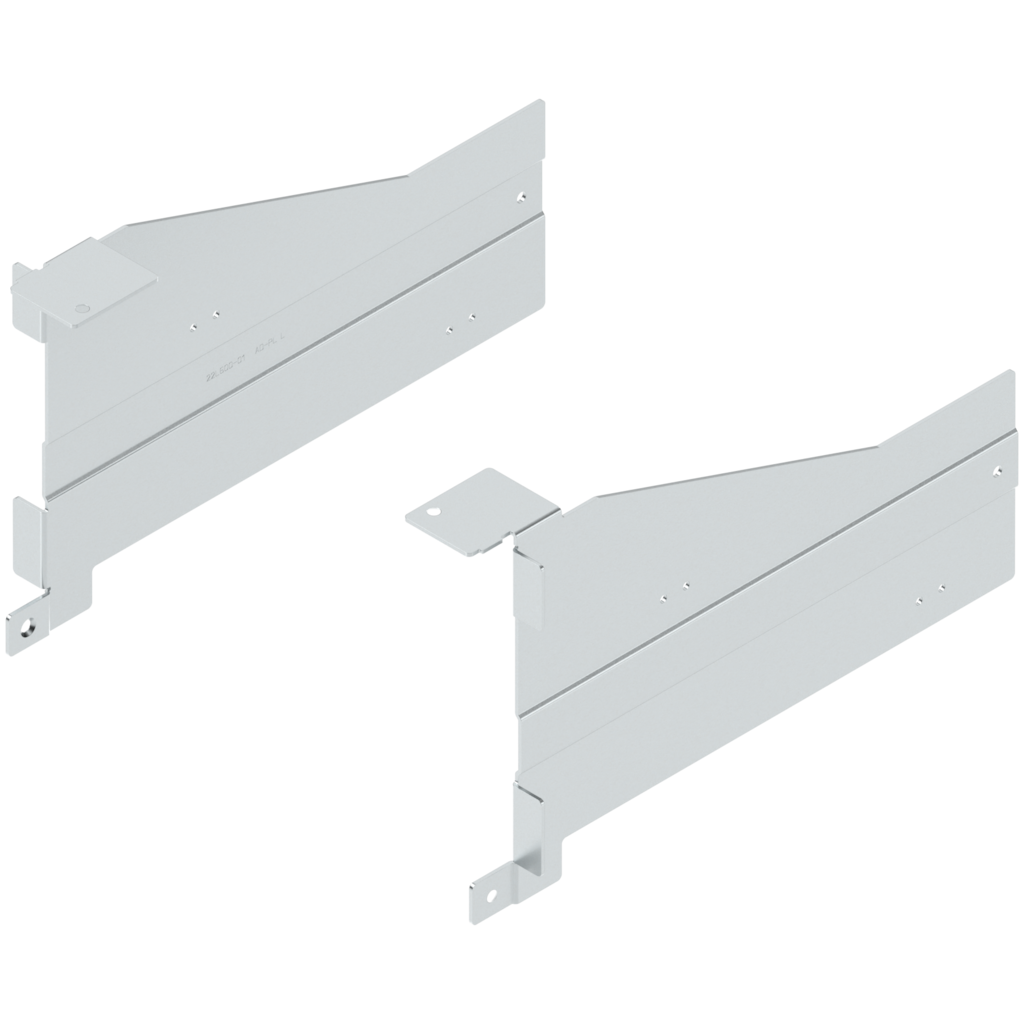

AVENTOS HL top screw-on bracket
AVENTOS HL top screw-on bracket
Ident no: 04316662
Part no.: 22L6001 ADAP R+LV1 ZN
Box qty: 1 pc
  • type: screw-on bracket
  • lift system: AVENTOS HL top
AVENTOS HL top lift up, screw-on bracket, screw-on, Zinc plated
Ident no: 04316662 Part no.: 22L6001 ADAP R+LV1 ZN Box qty: 1 pc
  • type: screw-on bracket
  • lift system: AVENTOS HL top
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Mit dem Anschraubwinkel wird eine stabile Befestigung des AVENTOS-Kraftspeichers an Korpussen mit Rahmenbauweise gewährleistet. Es handelt sich um eine verzinkte Metallplatte, die am Rahmen des Korpus angeschraubt wird, um anschließend den Kraftspeicher daran zu befestigen.
description Technical data expand_more

Technical data

type
screw-on bracket
colour/surface
zinc plated
lift system
AVENTOS HL top
scope of delivery
2x screw-on bracket
suitable for lift system type
HL top
