AVENTOS HS top complete set

chevron_left Back

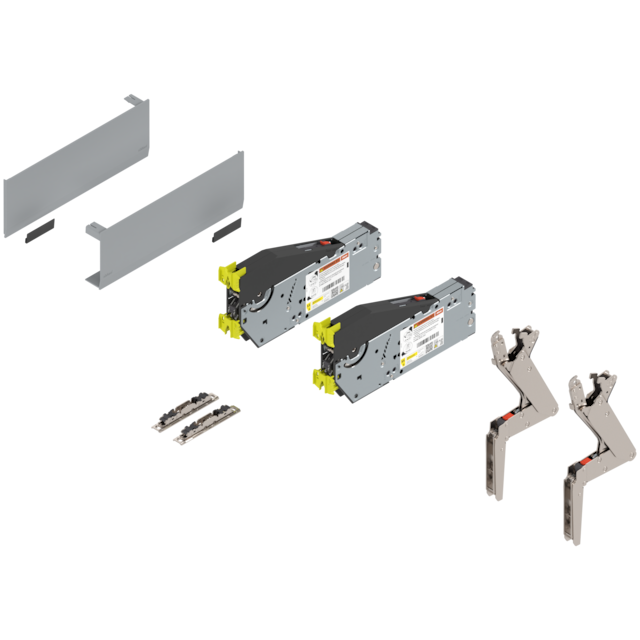

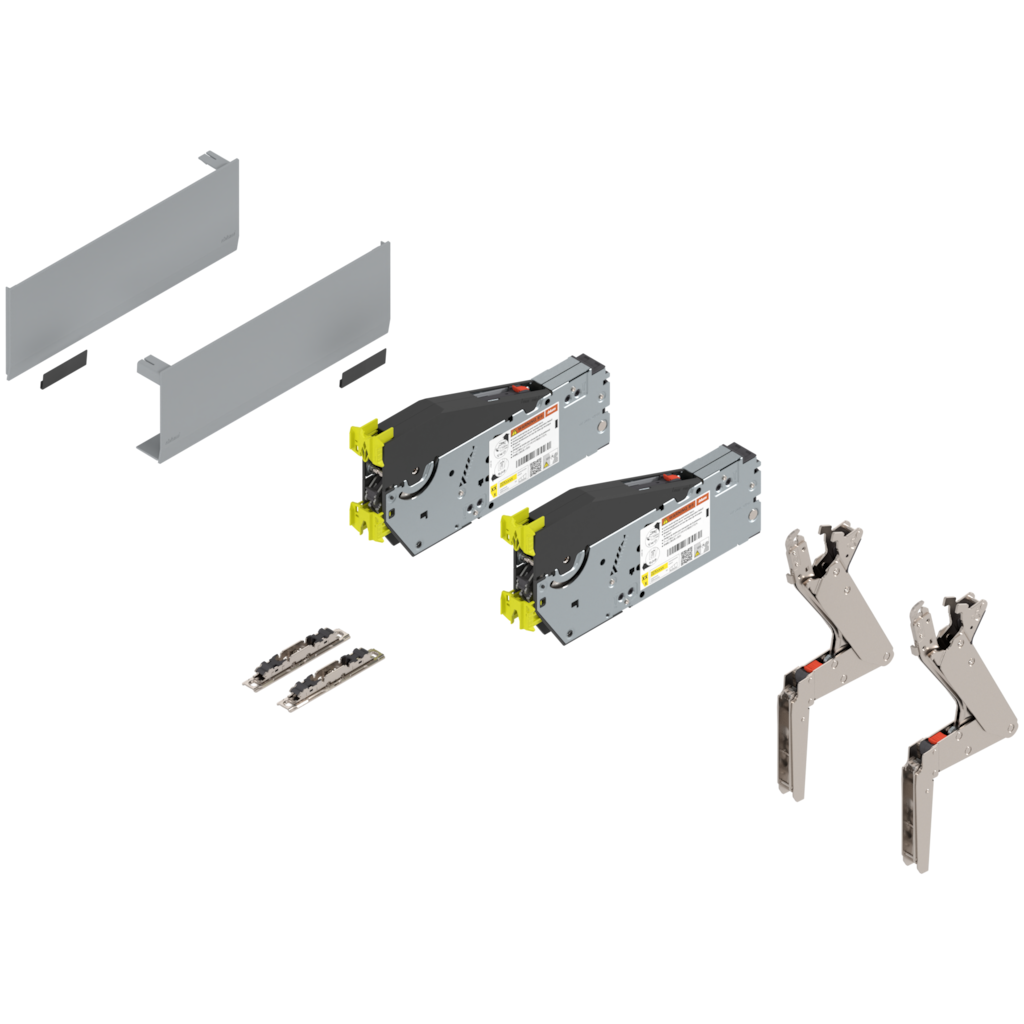

AVENTOS HS top complete set
AVENTOS HS top complete set
Ident no: 06259039
Part no.: 22S1505 AV-HS GRV1HG/T
Box qty: 1 pc
  • motion technology: integrated BLUMOTION / suitable for SERVO-DRIVE
  • fixing method on the cabinet: with screws
  • colour/surface: zinc plated
  • for cabinet height: 480.0 - 660.0 mm
  • for front weight: 2.75 - 15.25 kg
AVENTOS HS top up & over lift system (set), CH/FW: from 480 mm (2.75-12.75 kg) to 660 mm (3-15.25 kg), suitable for SERVO-DRIVE, Light grey/Dark grey
Ident no: 06259039 Part no.: 22S1505 AV-HS GRV1HG/T Box qty: 1 pc
  • motion technology: integrated BLUMOTION / suitable for SERVO-DRIVE
  • fixing method on the cabinet: with screws
  • colour/surface: zinc plated
  • for cabinet height: 480.0 - 660.0 mm
  • for front weight: 2.75 - 15.25 kg
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Mit dem Komplett-Set lässt sich das Klappensystem AVENTOS HS top realisieren. Mit der Hochschwenkklappe AVENTOS HS top wird die schwere, einteilige Front nach oben geschwenkt. AVENTOS HS top bietet die ideale Lösung für große, einteilige Fronten in Hoch- und Oberschränken. Wählen Sie zwischen zwei Arten der Kraftspeicherbefestigung: Über integrierte Systemschrauben oder mittels Positionsfindung. Die Montage erfolgt weitestgehend werkzeuglos, indem die Hebel am Kraftspeicher und an der Frontbefestigung eingeclippt werden.
description Technical data expand_more

Technical data

lift system
AVENTOS HS top
type
complete set
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
fixing method on the cabinet
with screws
colour/surface
zinc plated
