AVENTOS HS top lever

chevron_left Back

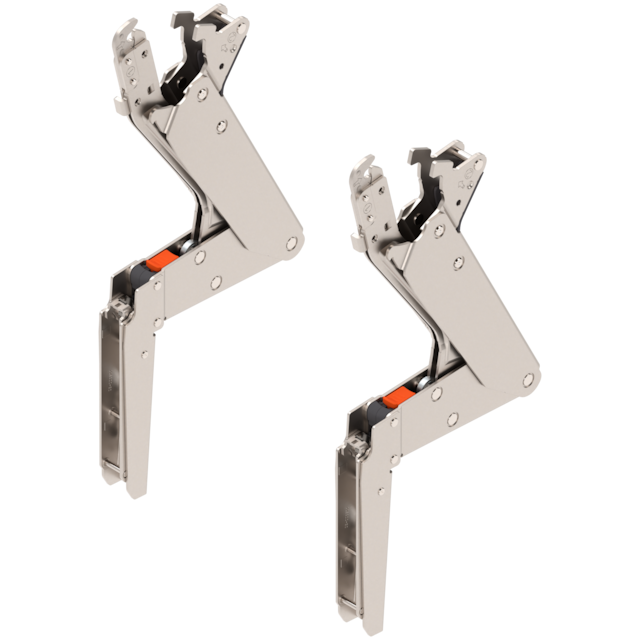

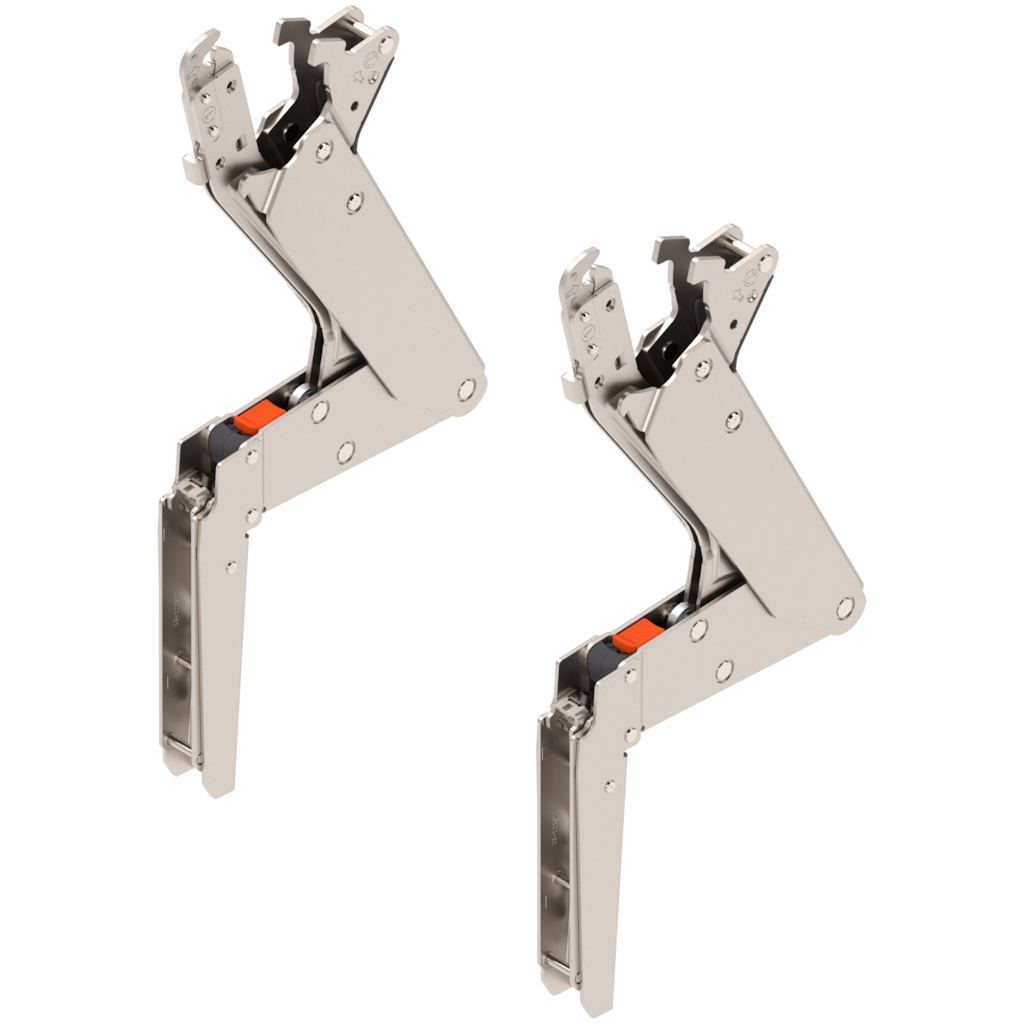

AVENTOS HS top lever
AVENTOS HS top lever
Ident no: 04455776
Part no.: 22S3500 HEBEL S2 NI
Box qty: 1 pc
  • side position: left/right
AVENTOS HS top up & over lift system, lever (Set), CH=350-800 mm, symmetrical, Nickel plated
Ident no: 04455776 Part no.: 22S3500 HEBEL S2 NI Box qty: 1 pc
  • side position: left/right
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The lever arm secures the connection between the lift mechanism and the front fixing bracket and ensures stable motion when opening and closing the wall cabinet front.
description Technical data expand_more

Technical data

type
lever
suitable for lift system type
HS top
lever type
22S350x
min. front height
318.00 mm
max. front height
800.00 mm
