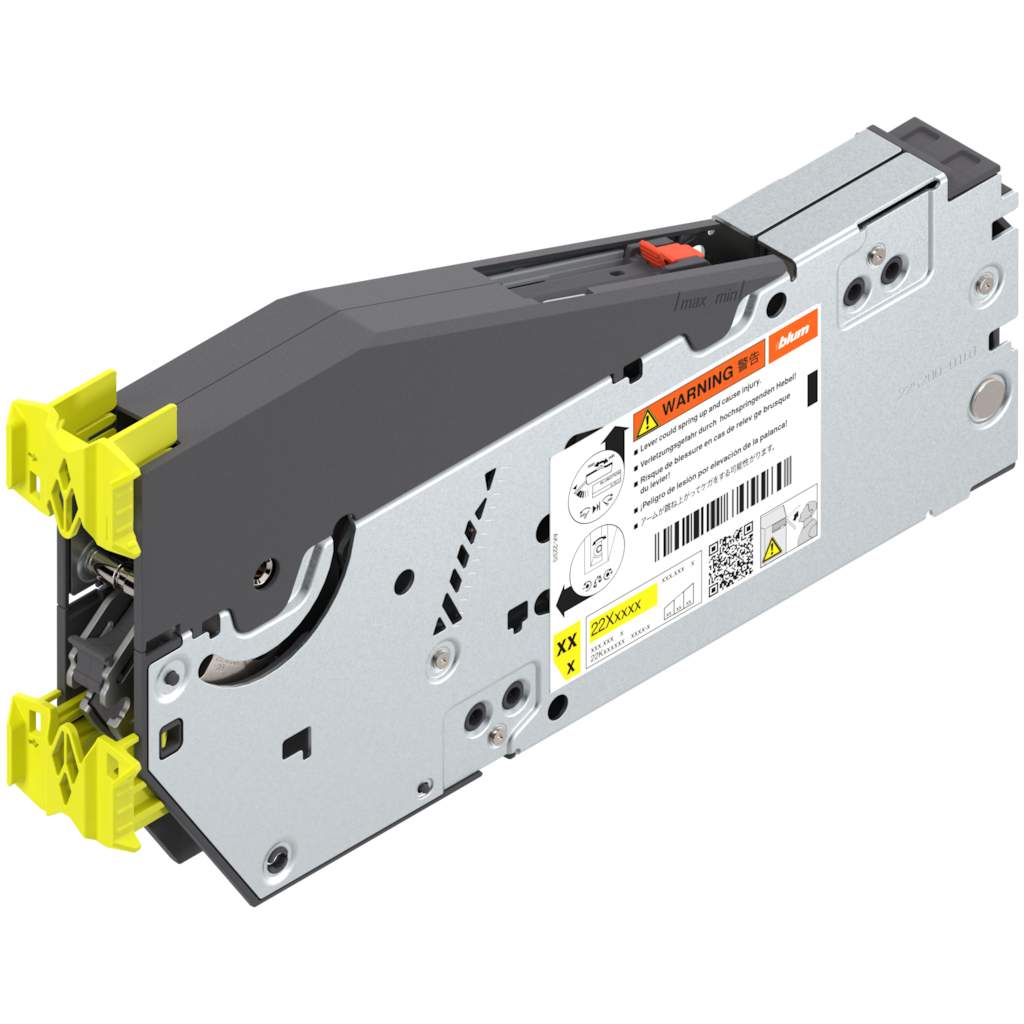

AVENTOS HS top lift mechanism

AVENTOS HS top lift mechanism
AVENTOS HS top lift mechanism
Ident no: 04194650
Part no.: 22S2501 KRAFTSP 16 ZN
Box qty: 16 pcs
  • type: lift mechanism
  • fixing method on the cabinet: with screws
  • for cabinet height: 480.0 - 660.0 mm
  • for front weight: 2.75 - 15.25 kg

AVENTOS HS top lift mechanism

  • type: lift mechanism
  • fixing method on the cabinet: with screws
  • for cabinet height: 480.0 - 660.0 mm
  • for front weight: 2.75 - 15.25 kg
Ident no: 04194650 Part no.: 22S2501 KRAFTSP 16 ZN Box qty: 16 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Der Kraftspeicher sorgt für leichtes und komfortables Öffnen von Klappen. Dieser dient dazu, das Gewicht der Front auszugleichen und diese in jeder gewünschten Position zu halten. Es handelt sich um ein mechanisches Bauteil, das an der Korpusseite befestigt wird.
description Technical data expand_more

Technical data

type
lift mechanism
lift system
AVENTOS HS top
suitable for lift system type
HS top
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
side position
left/right
