AVENTOS HS top lift mechanism set

chevron_left Back

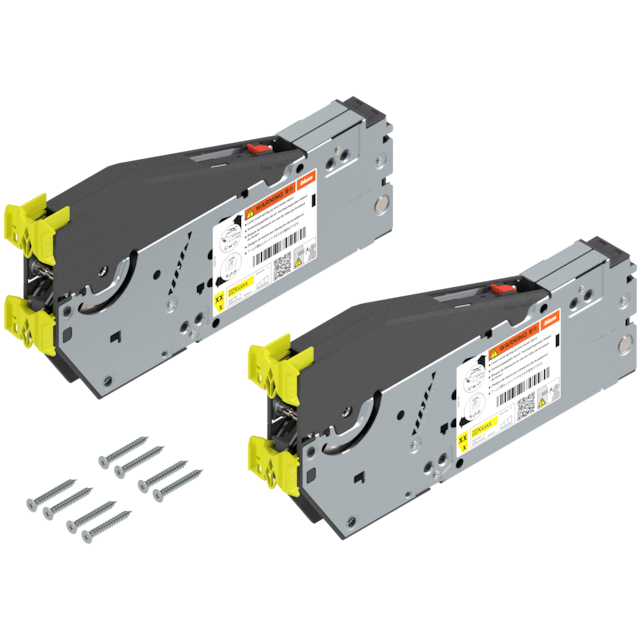

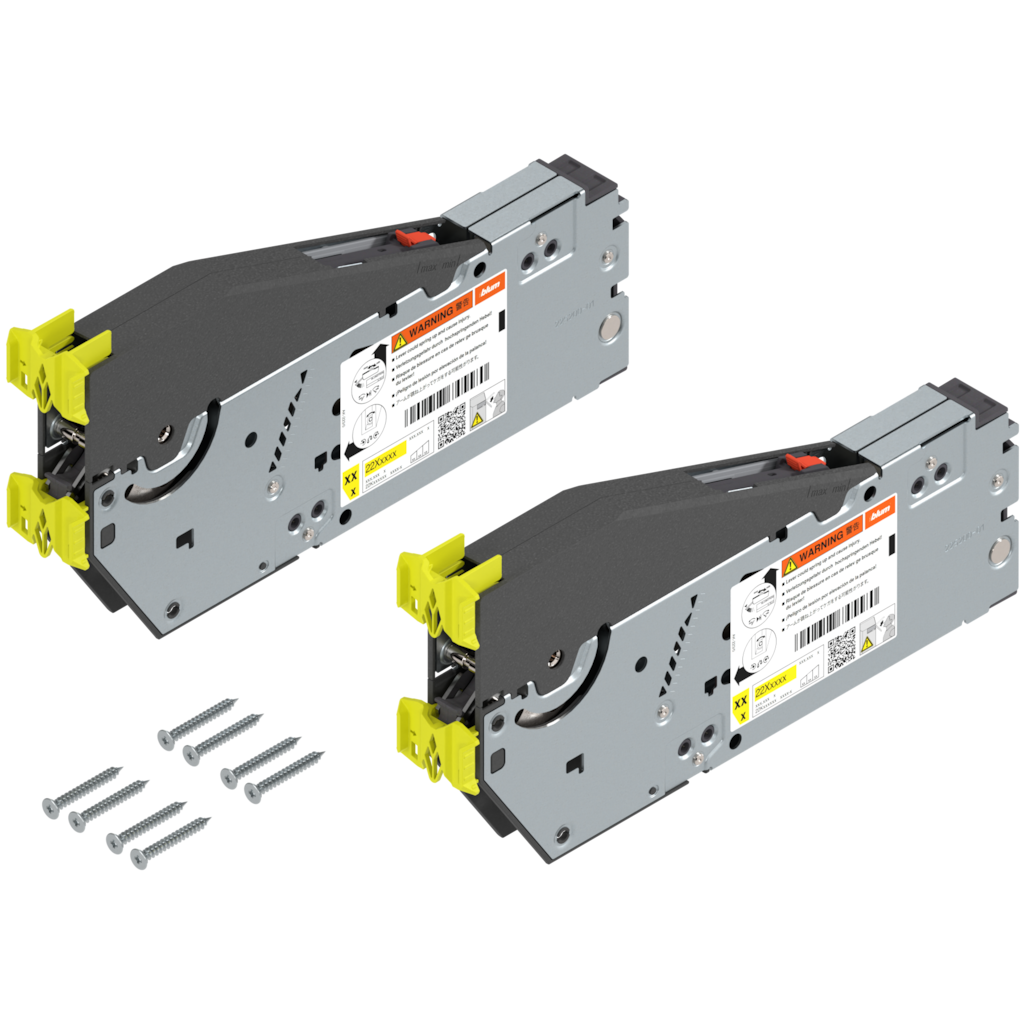

AVENTOS HS top lift mechanism set
AVENTOS HS top lift mechanism set
Ident no: 06873965
Part no.: 22S2200 KRAFTSP S2 ZN
Box qty: 1 pc
  • type: lift mechanism set
  • fixing method on the cabinet: with screws
  • for cabinet height: 350.0 - 540.0 mm
  • for front weight: 2.00 - 12.50 kg
AVENTOS HS top up & over lift system, lift mechanism (Set), CH=350-540 mm, for screwing on, suitable for SERVO-DRIVE, Zinc plated
Ident no: 06873965 Part no.: 22S2200 KRAFTSP S2 ZN Box qty: 1 pc
  • type: lift mechanism set
  • fixing method on the cabinet: with screws
  • for cabinet height: 350.0 - 540.0 mm
  • for front weight: 2.00 - 12.50 kg
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The lift mechanism ensures convenient, easy opening of wall cabinet fronts. It counterbalances the weight of the front and holds it open in any position you wish. It is a mechanical component, which is mounted on the cabinet side.
description Technical data expand_more

Technical data

type
lift mechanism set
lift system
AVENTOS HS top
suitable for lift system type
HS top
motion technology
integrated BLUMOTION / suitable for SERVO-DRIVE
side position
left/right
