BACKFIX L assembly device

chevron_left Back

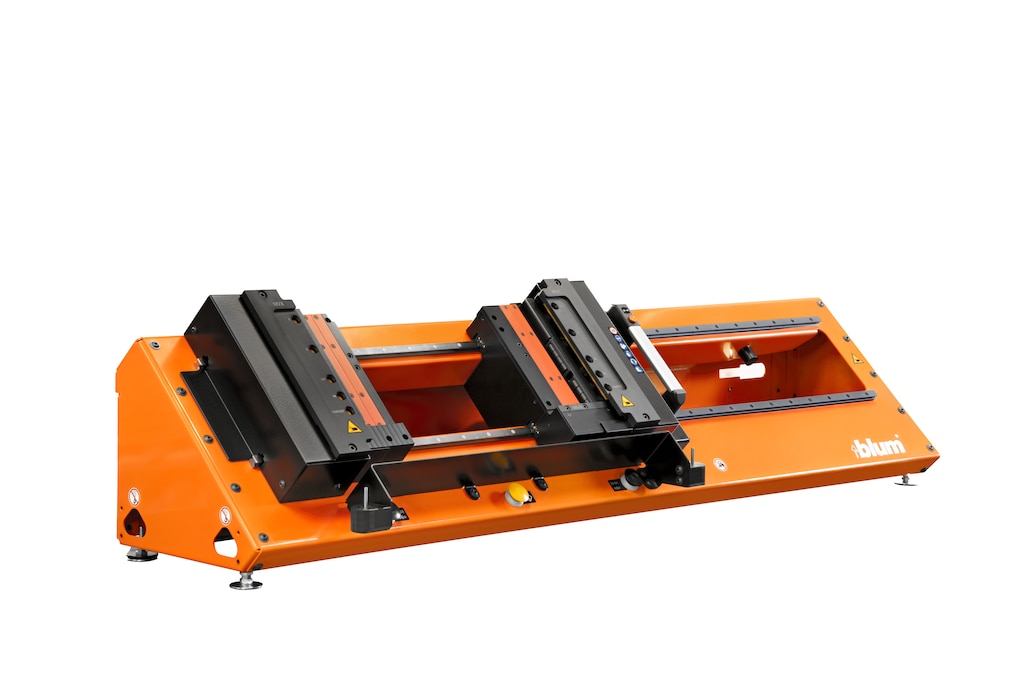

BACKFIX L assembly device
BACKFIX, table device, for LEGRABOX, pneumatic, assembly type: nails, CW from 250 to 1200 mm, Orange
Ident no: 07394379
Part no.: ZMR.1700 BACKFIX L OR
Box qty: 1 pc

BACKFIX, table device, for LEGRABOX, pneumatic, assembly type: nails, CW from 250 to 1200 mm, Orange

Ident no: 07394379 Part no.: ZMR.1700 BACKFIX L OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

With the BACKFIX L assembly device, LEGRABOX chipboard backs can be installed quickly and easily using an air nailer. The integrated pneumatic clamping enables precise, gap-free assembly.
description Technical data expand_more

Technical data

type
assembly device
colour/surface
orange/black
scope of delivery
1x BACKFIX, 1x BACKFIX L, 7x Operating instructions
assembly option
LEGRABOX
