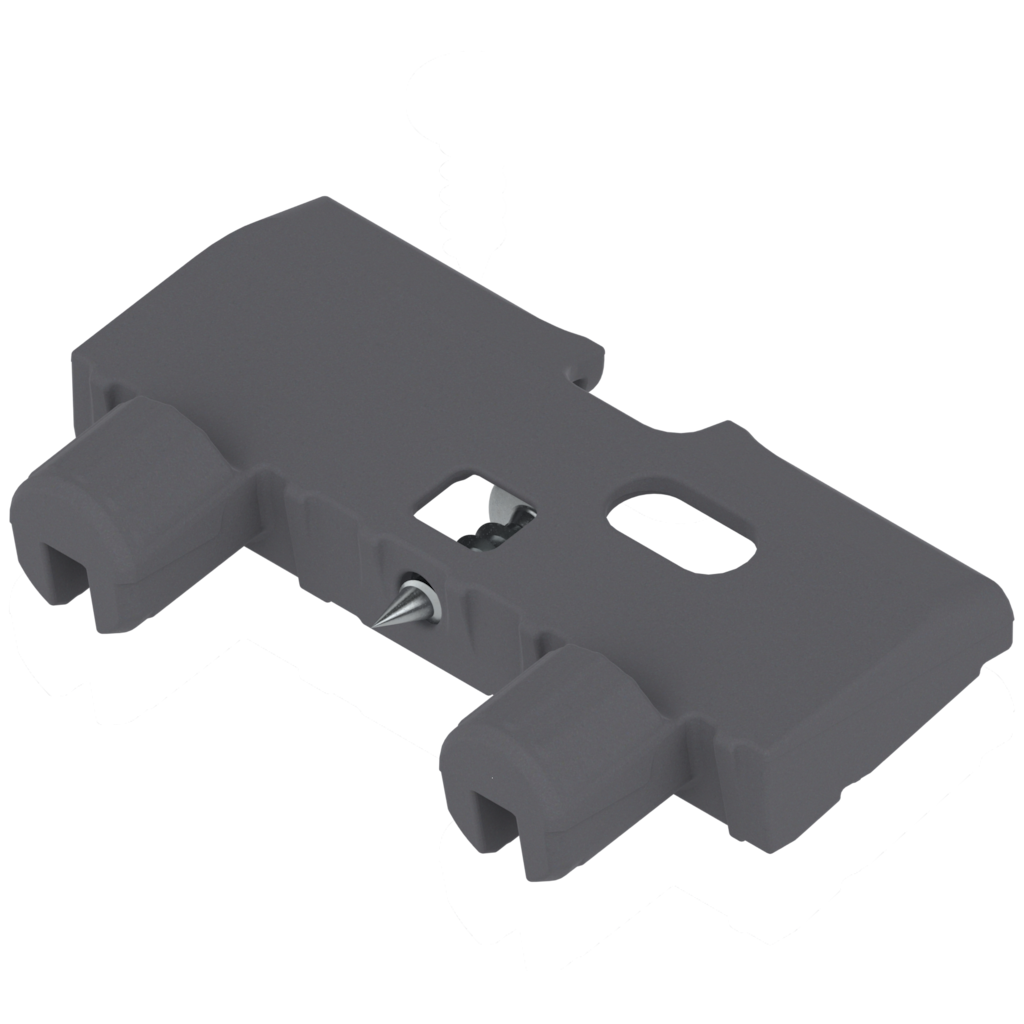

Base support bracket for knocking in and screwing
Base support bracket for knocking in and screwing
Ident no: 01486446
Part no.: Z96.2011 BOD-ST 250R737
Box qty: 250 pcs
  • colour/surface: RAL 7037 dust grey
  • side position: left/right
  • Front fixing: for knocking in and screwing
TANDEMBOX base support bracket, Required for cabinet widths ≥ 750 mm, knock-in and screw-on, R7037 dust grey
Ident no: 01486446 Part no.: Z96.2011 BOD-ST 250R737 Box qty: 250 pcs
  • colour/surface: RAL 7037 dust grey
  • side position: left/right
  • Front fixing: for knocking in and screwing
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The base support bracket is used to support the base of the pull-out. It is suitable for pull-outs above a cabinet base or a cross member and prevents the TIP-ON BLUMOTION synchronisation linkage from sagging.
description Technical data expand_more

Technical data

type
base support bracket
height
10.4 mm
material
nylon
colour/surface
RAL 7037 dust grey
side position
left/right
