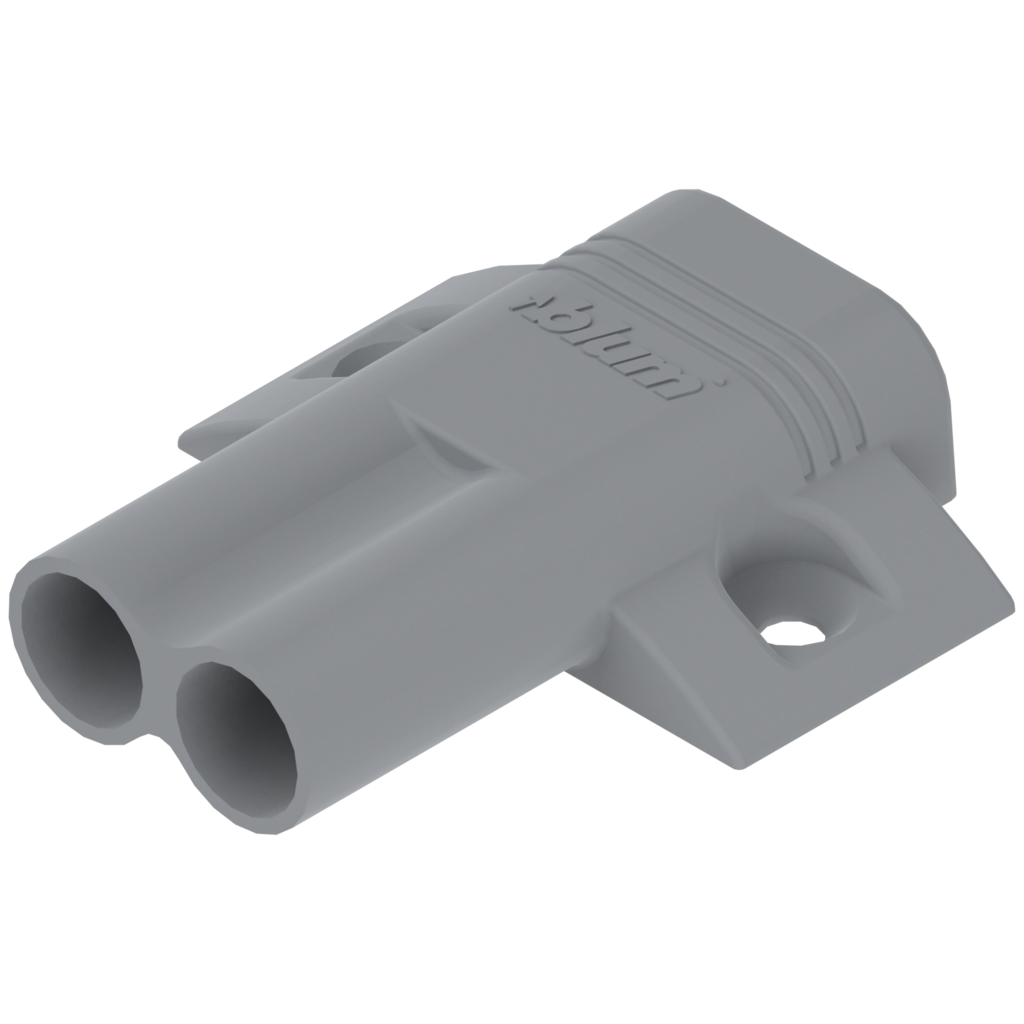

BLUMOTION adapter plate cruciform

BLUMOTION adapter plate cruciform
BLUMOTION adapter plate cruciform
Ident no: 02713903
Part no.: 970.2501 BLU-AP V50R736
Box qty: 50 pcs
  • colour/surface: RAL 7036 platinum grey
  • fixing method: for screwing on
  • material: nylon
  • shape: cruciform

BLUMOTION adapter plate cruciform

  • colour/surface: RAL 7036 platinum grey
  • fixing method: for screwing on
  • material: nylon
  • shape: cruciform
Ident no: 02713903 Part no.: 970.2501 BLU-AP V50R736 Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

  • check_circle_outline Easy installation inside the cabinet
The BLUMOTION adapter plate is a sturdy housing into which BLUMOTION, Blum's adaptive soft-close mechanism, is inserted. Because of the adapter plate, no front face drilling is required in the cabinet. It is also possible to implement inset applications with the adapter plate.
description Technical data expand_more

Technical data

type
BLUMOTION adapter plate
colour/surface
RAL 7036 platinum grey
fixing method
for screwing on
material
nylon
mounting plate fixing
for screwing on with chipboard screws
