BLUMOTION adapter plate cruciform

chevron_left Back

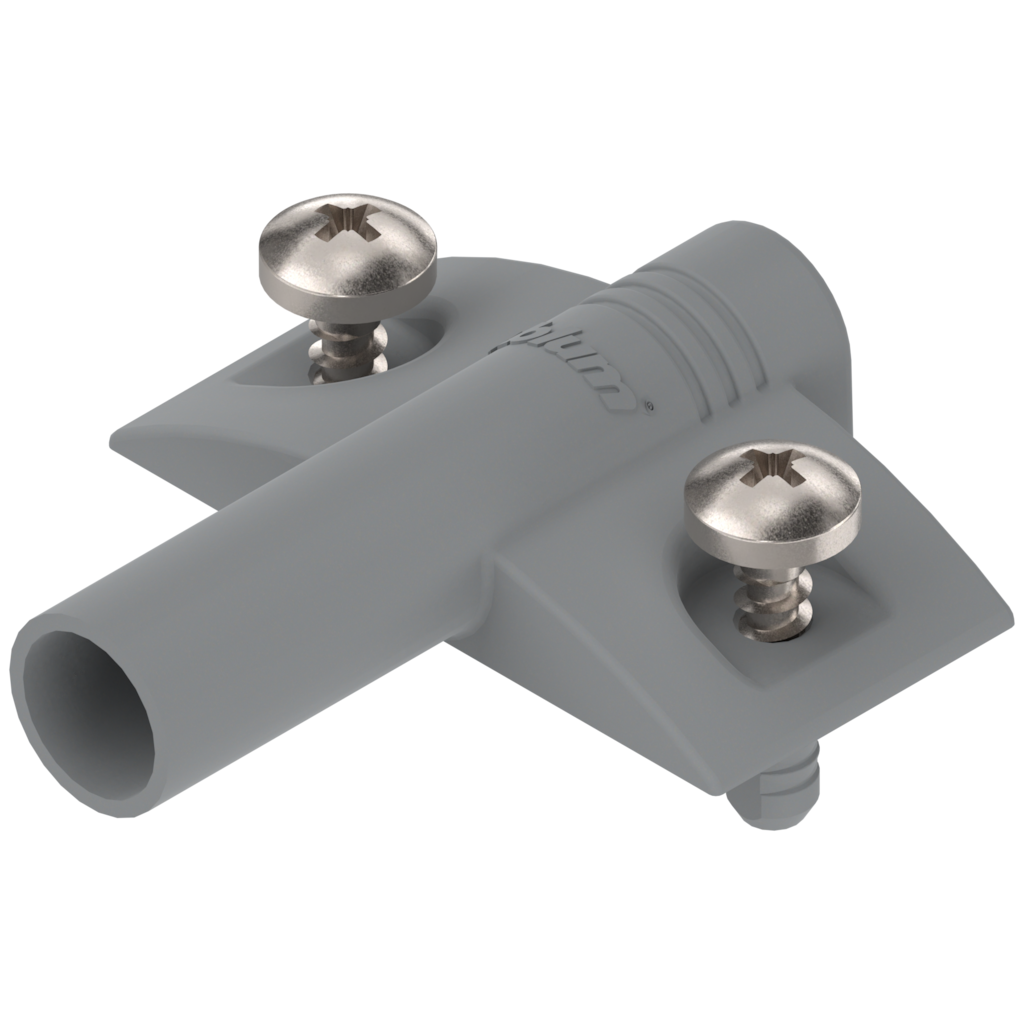

BLUMOTION adapter plate cruciform
BLUMOTION adapter plate cruciform
Ident no: 03141113
Part no.: 970.15E1 BLU-AP 500R736
Box qty: 500 pcs
  • colour/surface: RAL 7036 platinum grey
  • fixing method: with EXPANDO split dowels
  • material: nylon
  • shape: cruciform
BLUMOTION adapter plate in adapter plate, cruciform (37/32), nylon, R7036 platinum grey
Ident no: 03141113 Part no.: 970.15E1 BLU-AP 500R736 Box qty: 500 pcs
  • colour/surface: RAL 7036 platinum grey
  • fixing method: with EXPANDO split dowels
  • material: nylon
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The BLUMOTION adapter plate is a sturdy housing into which BLUMOTION, Blum's adaptive soft-close mechanism, is inserted. Because of the adapter plate, no front face drilling is required in the cabinet. It is also possible to implement inset applications with the adapter plate.
description Technical data expand_more

Technical data

type
BLUMOTION adapter plate
colour/surface
RAL 7036 platinum grey
fixing method
with EXPANDO split dowels
material
nylon
mounting plate fixing
with EXPANDO split dowels
