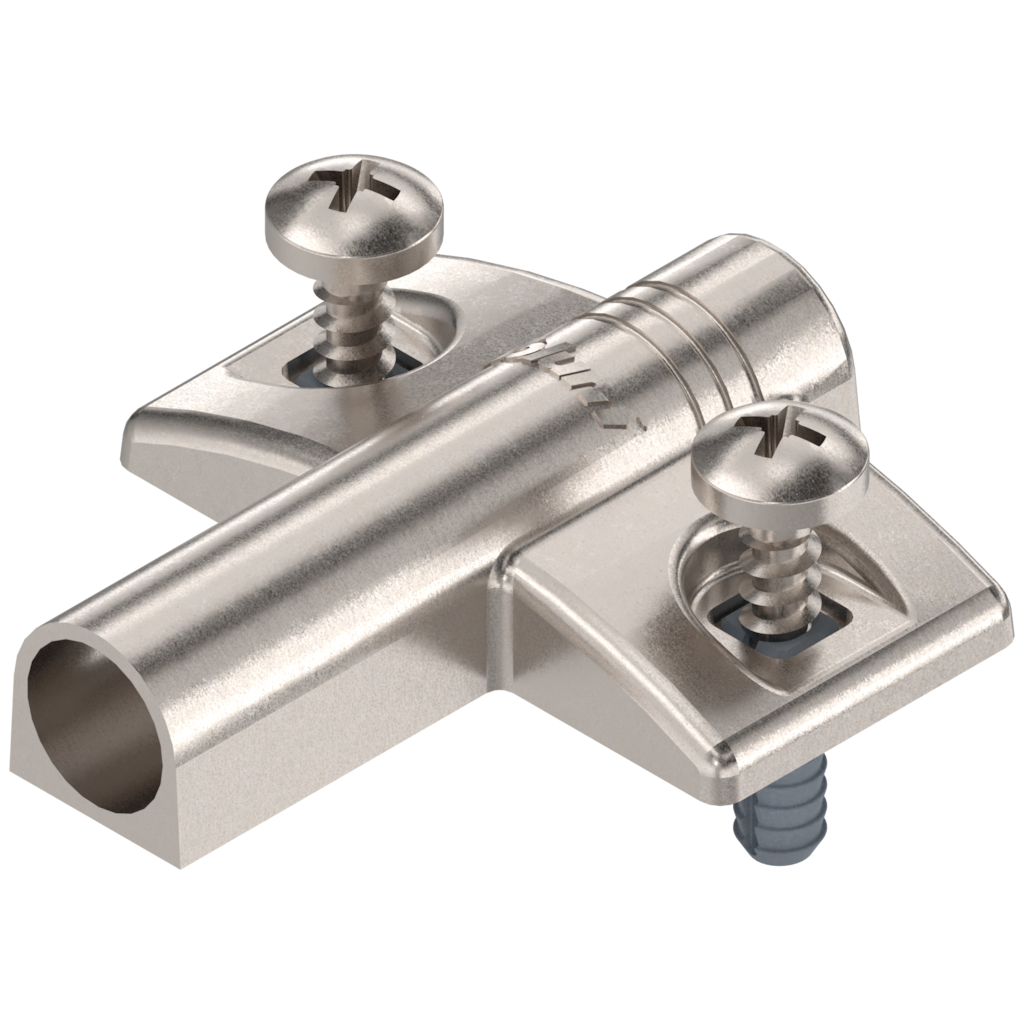

BLUMOTION adapter plate cruciform
BLUMOTION adapter plate cruciform
Ident no: 03195203
Part no.: 970.55E1 BLU-AP V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: with EXPANDO split dowels
  • material: zinc
  • shape: cruciform
BLUMOTION adapter plate, cruciform (37/32), zinc, Nickel plated
Ident no: 03195203 Part no.: 970.55E1 BLU-AP V50 NI Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: with EXPANDO split dowels
  • material: zinc
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

BLUMOTION, das adaptive Dämpfungssystem von Blum, lässt sich mithilfe der BLUMOTION-Adapterplatte im Inneren des Korpus einfach befestigen.
description Technical data expand_more

Technical data

type
BLUMOTION adapter plate
colour/surface
nickel plated
fixing method
with EXPANDO split dowels
material
zinc
mounting plate fixing
with EXPANDO split dowels
