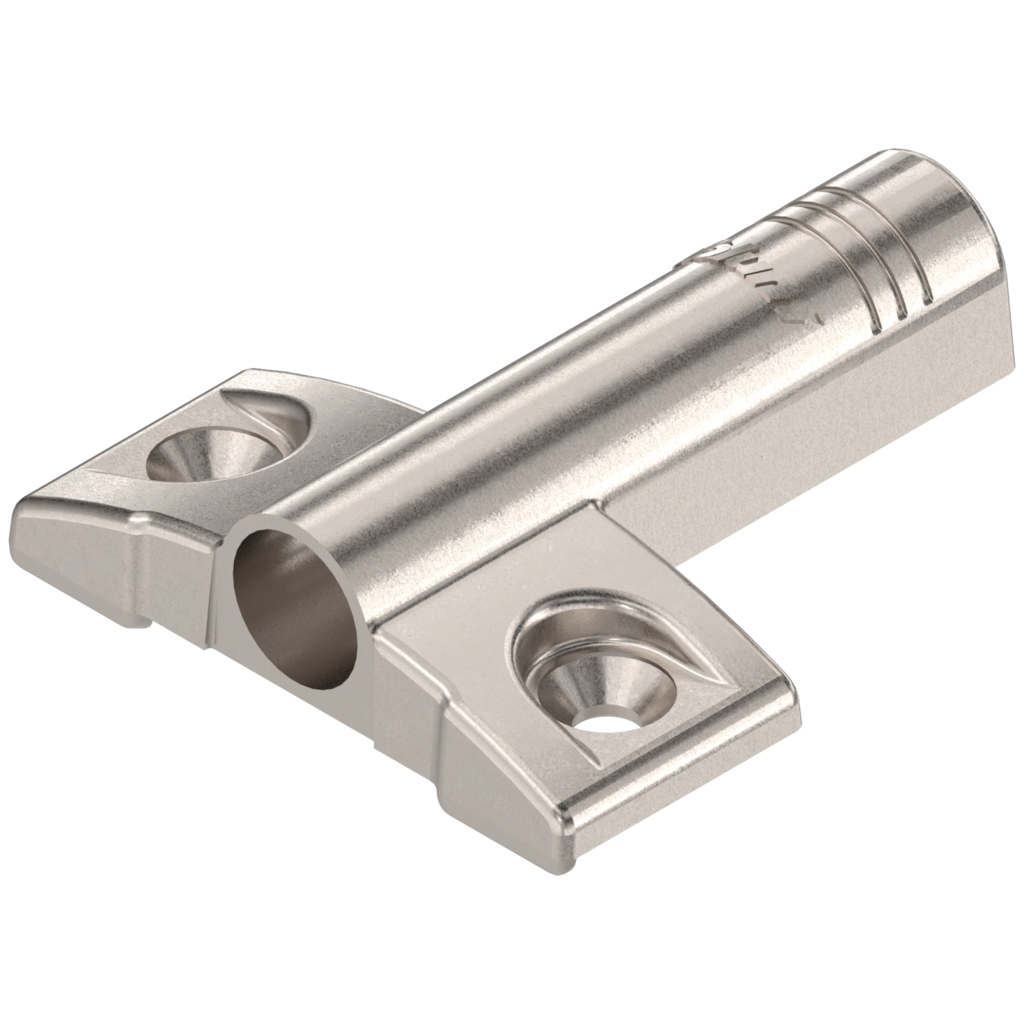

BLUMOTION adapter plate cruciform

BLUMOTION adapter plate cruciform
BLUMOTION adapter plate cruciform
Ident no: 03199703
Part no.: 970.5701 BLU-AP V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: for screwing on
  • material: zinc
  • shape: cruciform

BLUMOTION adapter plate cruciform

  • colour/surface: nickel plated
  • fixing method: for screwing on
  • material: zinc
  • shape: cruciform
Ident no: 03199703 Part no.: 970.5701 BLU-AP V50 NI Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

BLUMOTION, das adaptive Dämpfungssystem von Blum, lässt sich mithilfe der BLUMOTION-Adapterplatte im Inneren des Korpus einfach befestigen.
description Technical data expand_more

Technical data

type
BLUMOTION adapter plate
colour/surface
nickel plated
fixing method
for screwing on
material
zinc
mounting plate fixing
for screwing on with chipboard screws
