BLUMOTION adapter plate horizontal

chevron_left Back

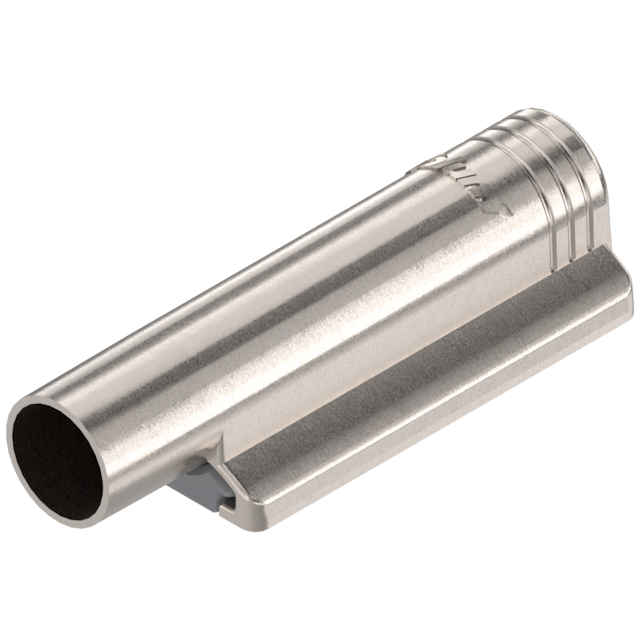

BLUMOTION adapter plate horizontal
BLUMOTION adapter plate horizontal
Ident no: 03198303
Part no.: 970.5201 BLU-AP V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: for screwing on
  • material: nylon/zinc
  • shape: horizontal
BLUMOTION adapter plate, horizontal (20/32), nylon / Zinc, Nickel plated
Ident no: 03198303 Part no.: 970.5201 BLU-AP V50 NI Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: for screwing on
  • material: nylon/zinc
  • shape: horizontal
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

BLUMOTION, das adaptive Dämpfungssystem von Blum, lässt sich mithilfe der BLUMOTION-Adapterplatte im Inneren des Korpus einfach befestigen.
description Technical data expand_more

Technical data

type
BLUMOTION adapter plate
colour/surface
nickel plated
fixing method
for screwing on
material
nylon/zinc
mounting plate fixing
for screwing on with chipboard screws
