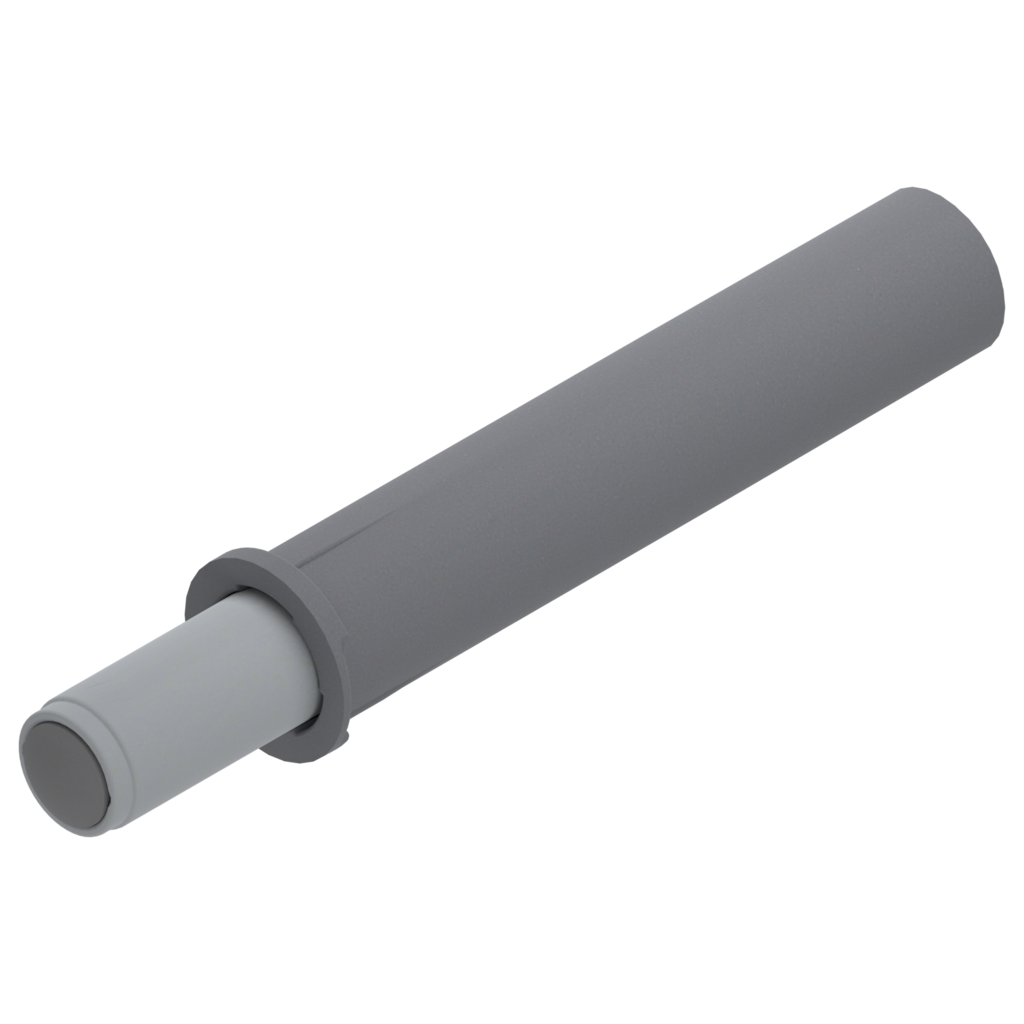

BLUMOTION retrofit part for drilling
BLUMOTION retrofit part for drilling
Ident no: 04802830
Part no.: 970.1002 BLU-LD 500R737
Box qty: 500 pcs
  • side position: left/right
  • material: nylon
  • colour/surface: RAL 7037 dust grey
  • fixing method: for drilling
BLUMOTION drilling, handle side, R7037 dust grey
Ident no: 04802830 Part no.: 970.1002 BLU-LD 500R737 Box qty: 500 pcs
  • side position: left/right
  • material: nylon
  • colour/surface: RAL 7037 dust grey
  • fixing method: for drilling
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

With BLUMOTION, doors can be closed softly and effortlessly. If closed with excessive force, the integrated overload safety feature takes effect – reducing the additional force through an additional flow channel inside BLUMOTION and thereby protecting the hinges from damage. The BLUMOTION retrofit part can also be installed in the cabinet retrospectively.
description Technical data expand_more

Technical data

type
BLUMOTION retrofit part
side position
left/right
material
nylon
colour/surface
RAL 7037 dust grey
fixing method
for drilling
