BLUMOTION retrofit part for drilling

chevron_left Back

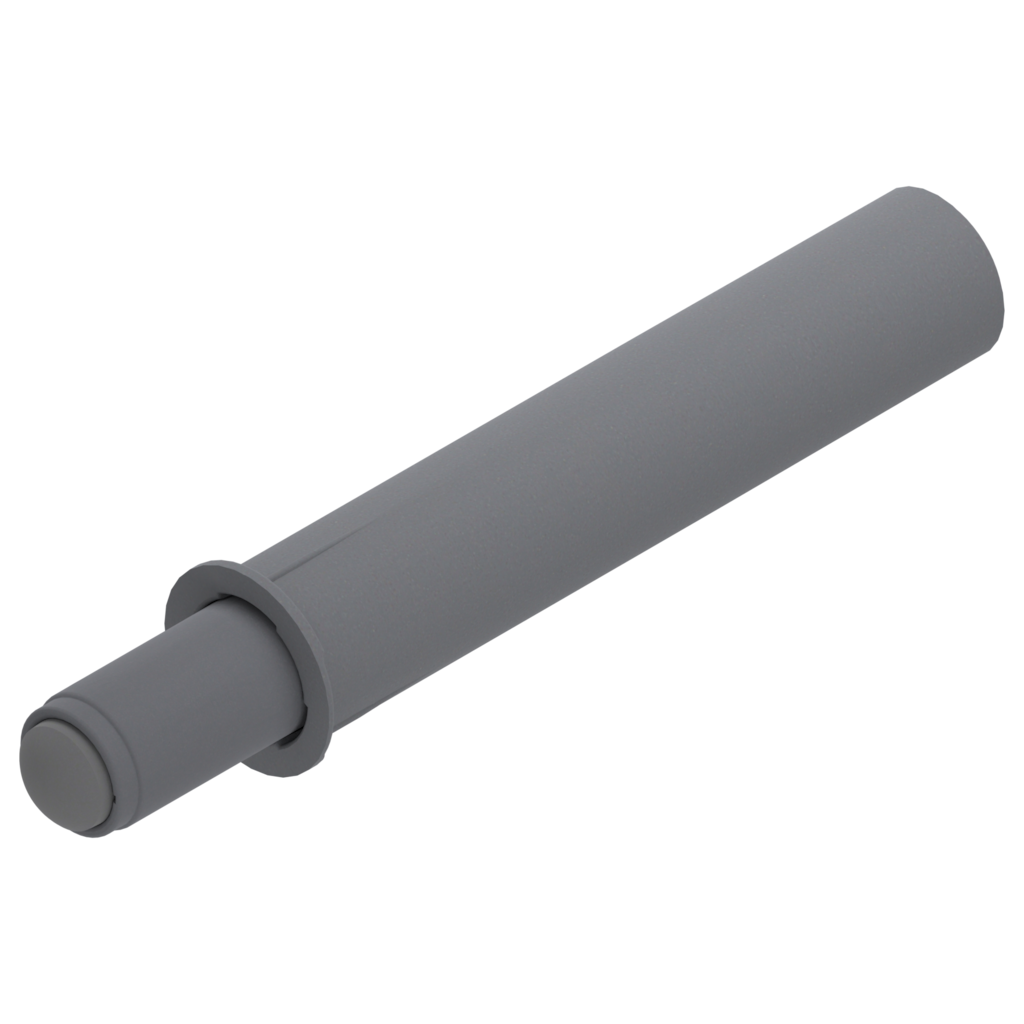

BLUMOTION retrofit part for drilling
BLUMOTION retrofit part for drilling
Ident no: 06823230
Part no.: 970A1002 BLUMOT V50R737
Box qty: 50 pcs
  • side position: left/right
  • material: nylon
  • colour/surface: RAL 7037 dust grey
  • fixing method: for drilling
BLUMOTION drilling, hinge side, R7037 dust grey
Ident no: 06823230 Part no.: 970A1002 BLUMOT V50R737 Box qty: 50 pcs
  • side position: left/right
  • material: nylon
  • colour/surface: RAL 7037 dust grey
  • fixing method: for drilling
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Mit BLUMOTION, dem adaptiven Dämpfungssystem, lassen sich Türen sanft und leise schließen, und zwar unabhängig vom Schwung und vom Gewicht der Tür. Im Falle einer unsachgemäßen Bedienung greift die integrierte Überlastsicherung: Sie baut durch einen zusätzlichen Strömungskanal im Innern der BLUMOTION den zusätzlichen Druck ab und schützt so Scharniere vor Beschädigungen. Der Einbau des BLUMOTION-Zusatzteils ist zu jedem Zeitpunkt des Produktions- und Vertriebsprozesses auf einfache Weise möglich.
description Technical data expand_more

Technical data

type
BLUMOTION retrofit part
side position
left/right
material
nylon
colour/surface
RAL 7037 dust grey
fixing method
for drilling
