BOXFIX E-L assembly device

chevron_left Back

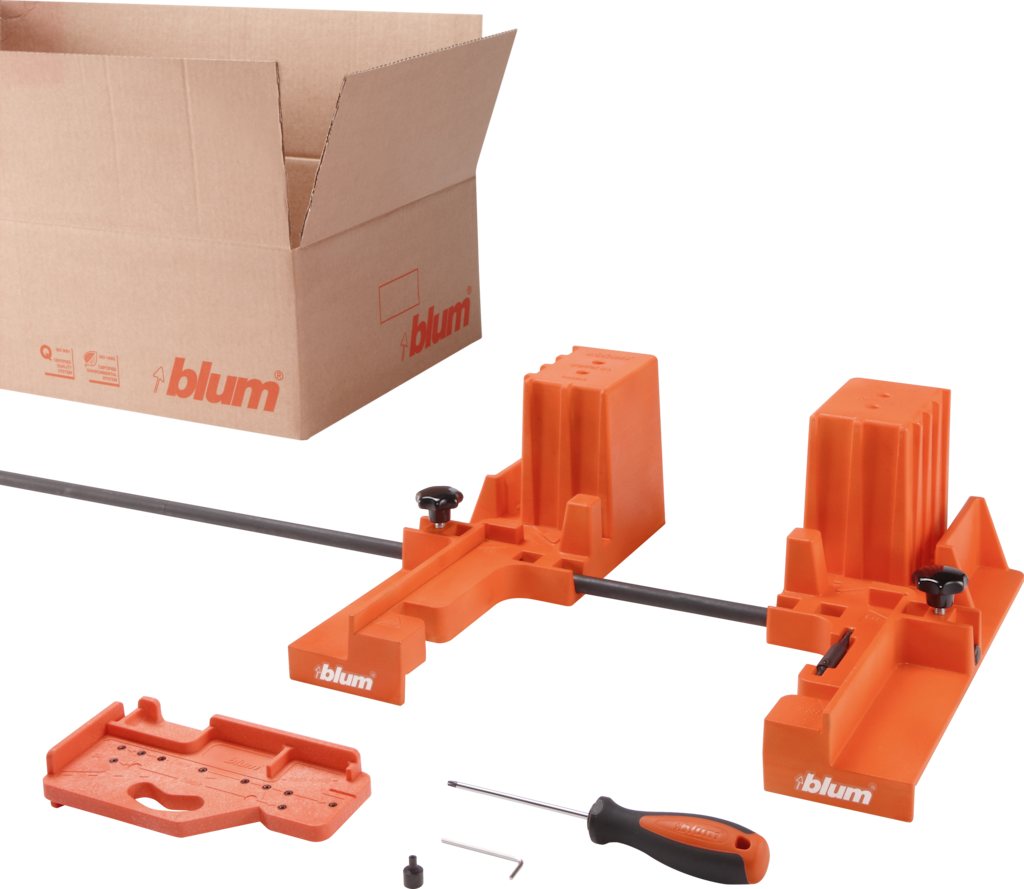

BOXFIX E-L assembly device
BOXFIX E-L assembly device, starter kit, table device, for LEGRABOX, manual, assembly type: screw-on, CW from 250 to 1200 mm, Orange
Ident no: 06381907
Part no.: ZMM.0700.20BF E-L+ZUT OR
Box qty: 1 pc

BOXFIX E-L assembly device, starter kit, table device, for LEGRABOX, manual, assembly type: screw-on, CW from 250 to 1200 mm, Orange

Ident no: 06381907 Part no.: ZMM.0700.20BF E-L+ZUT OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die manuelle Verarbeitungshilfe BOXFIX E-L ermöglicht die schnelle und einfache Montage sowie die präzise Verarbeitung aller LEGRABOX-Komponenten.
description Technical data expand_more

Technical data

type
assembly device
colour/surface
orange
scope of delivery
1x BOXFIX E-L
assembly option
LEGRABOX
