BOXFIX P Assembly device

chevron_left Back

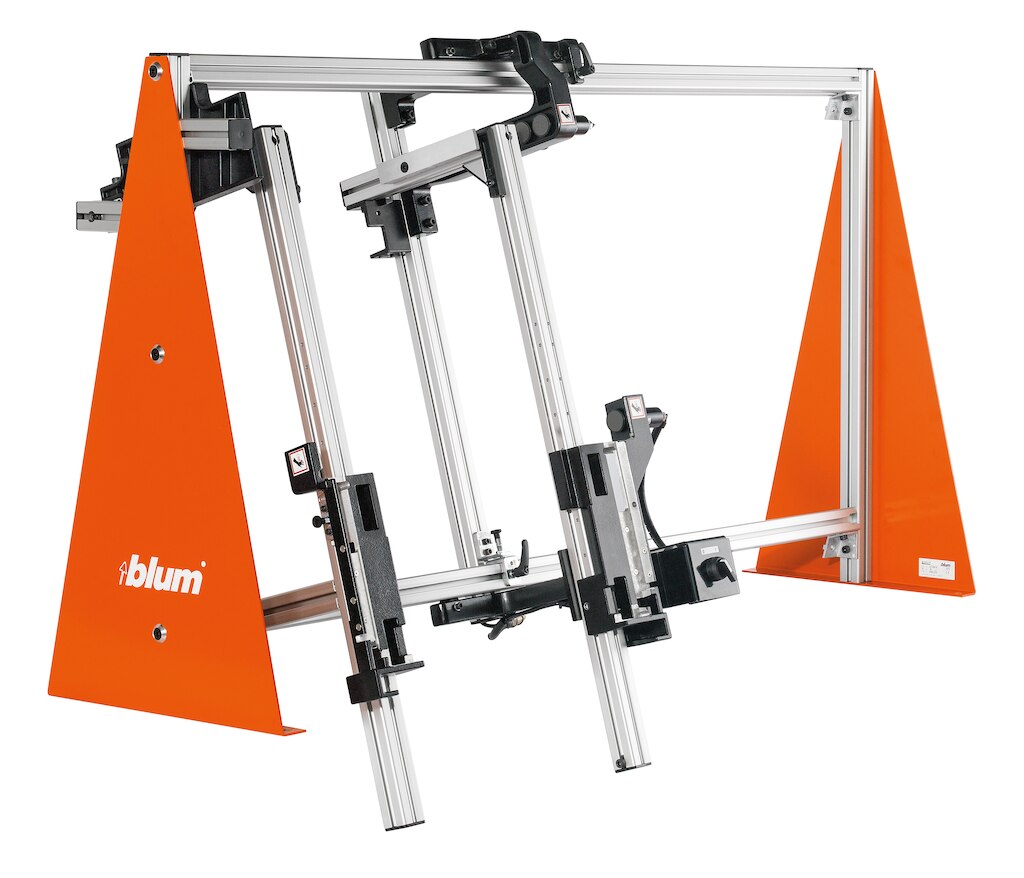

BOXFIX P Assembly device
BOXFIX P Assembly device
Ident no: 02434719
Part no.: ZMM.2750.02BOXFIX P
Box qty: 1 pc
BOXFIX P assembly device, table device, for LEGRABOX/TANDEMBOX, pneumatic, assembly type: screw-on, CW from 275 to 1200 mm
Ident no: 02434719 Part no.: ZMM.2750.02BOXFIX P Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

BOXFIX P sorgt durch leichte Handhabung und effektives Rüsten für mehr Komfort bei der Montage von Boxsystemen. Dank pneumatischer Klemmung erfolgt die Montage einfach und schnell.
description Technical data expand_more

Technical data

scope of delivery
1x BOXFIX P
type
Assembly device
width
609.00 mm
assembly option
LEGRABOX / TANDEMBOX
model
Series LE
