BOXFIX P assembly device

chevron_left Back

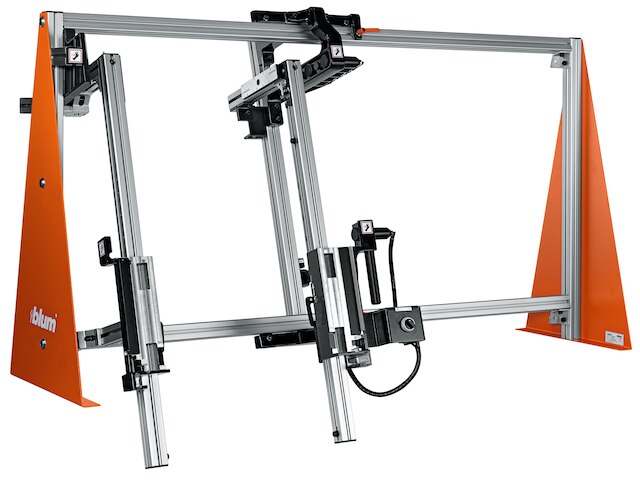

BOXFIX P assembly device
BOXFIX P assembly device
Ident no: 08222022
Part no.: ZMM.2750.01BOXFIX P
Box qty: 1 pc
BOXFIX P assembly device, table device, for LEGRABOX/TANDEMBOX, pneumatic, assembly type: screw-on, CW from 275 to 1200 mm
Ident no: 08222022 Part no.: ZMM.2750.01BOXFIX P Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Verarbeitungshilfe BOXFIX P erleichtert die Montage von Blum-Boxsystemen spürbar. BOXFIX P ist einfach zu bedienen und schnell zu rüsten. Dazu sorgt die pneumatische Klemmung für hohen Montagekomfort und präzise Verarbeitungsergebnisse.
description Technical data expand_more

Technical data

type
assembly device
scope of delivery
1x BOXFIX P
assembly option
LEGRABOX / TANDEMBOX
model
series LE
CAD/CAM data expand_more
