BOXFIX plus assembly device

chevron_left Back

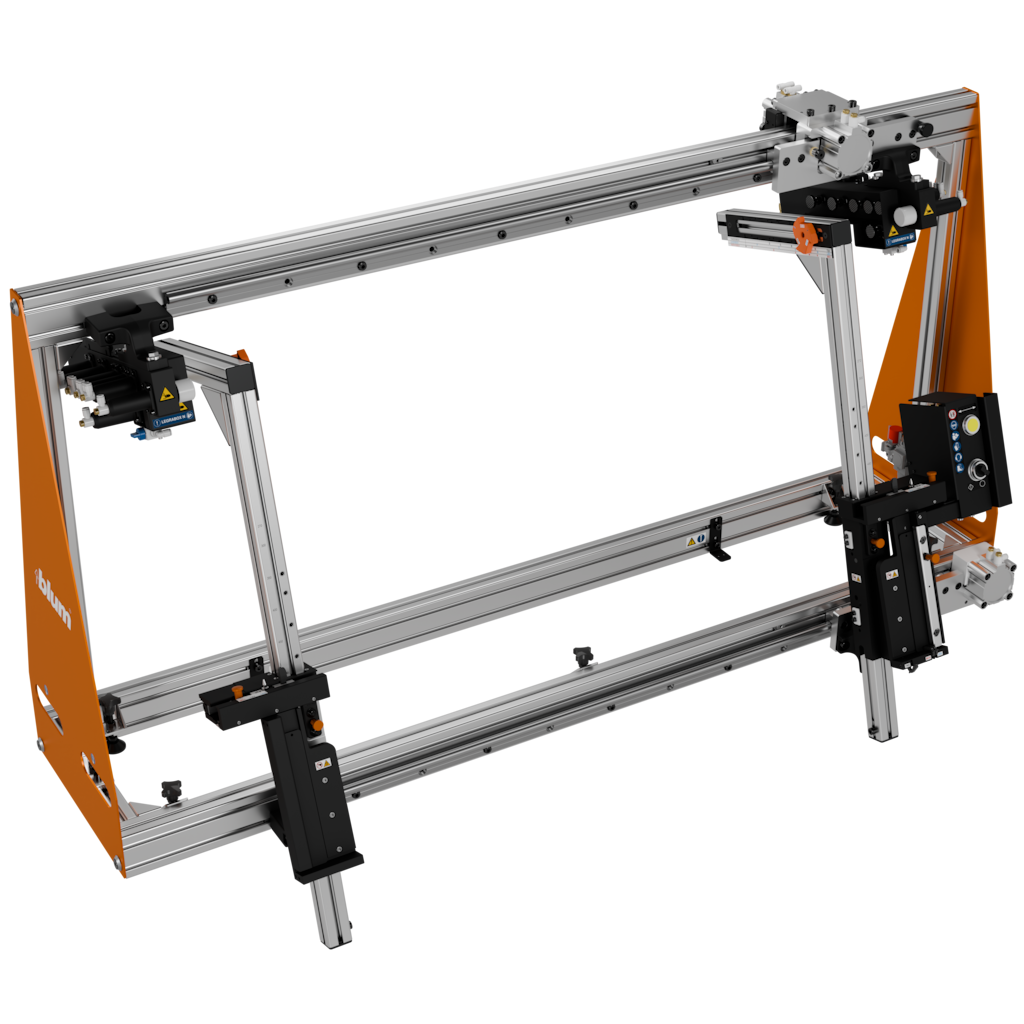

BOXFIX plus assembly device
BOXFIX plus assembly device
Ident no: 01686513
Part no.: ZMM.2500 BOXFIX PLUS
Box qty: 1 pc
BOXFIX plus, table device, for LEGRABOX/MERIVOBOX/TANDEMBOX, pneumatic, assembly type: screw-on, CW from 250 to 1200 mm
Ident no: 01686513 Part no.: ZMM.2500 BOXFIX PLUS Box qty: 1 pc
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Nails or screws? With the BOXFIX plus assembly device, Blum's LEGRABOX, MERIVOBOX and TANDEMBOX box systems can be assembled quickly and easily thanks to optional nail technology. The pneumatic clamping system guarantees easy assembly and precise results.
description Technical data expand_more

Technical data

type
assembly device
scope of delivery
1x BOXFIX plus, 7x Operating instructions, 1x installation instructions
assembly option
LEGRABOX / MERIVOBOX / TANDEMBOX
model
series OA
