BOXFIX PRO assembly device

chevron_left Back

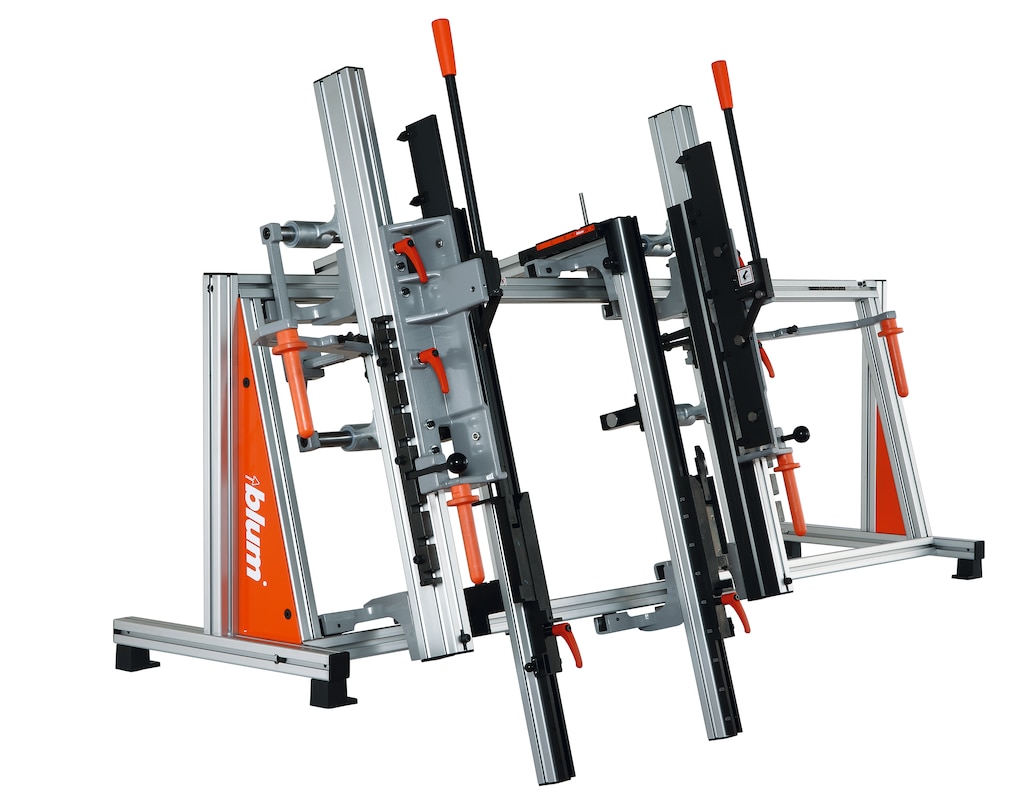

BOXFIX PRO assembly device
BOXFIX PRO assembly device
Ident no: 07302630
Part no.: ZMM.7350 BOXFIX PRO EV1
Box qty: 1 pc
BOXFIX PRO assembly device, table device, for TANDEMBOX, manual, assembly type: press-fit connection, CW from 270 to 1200 mm, E6/Ev1 natural
Ident no: 07302630 Part no.: ZMM.7350 BOXFIX PRO EV1 Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

With BOXFIX PRO, the industrial press-fit assembly method can also be used for small series by precisely press-fitting the TANDEMBOX drawer sides and grooved base together.
description Technical data expand_more

Technical data

type
assembly device
colour/surface
E6/EV1 natural
scope of delivery
1x BOXFIX PRO
width
1780.000 mm
assembly option
TANDEMBOX
