Cabinet angle template

chevron_left Back

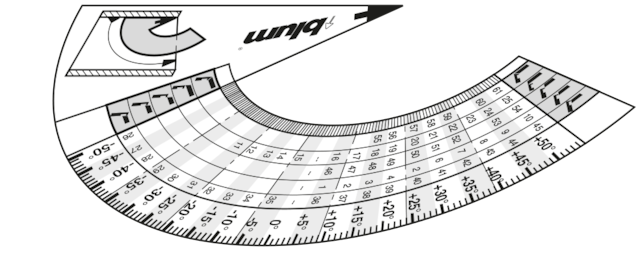

Cabinet angle template
Cabinet angle template
Ident no: 05191382
Part no.: 65.5810.03KO-WI-S V1 W
Box qty: 1 pc
  • type: cabinet angle template
Cabinet angle template, White
Ident no: 05191382 Part no.: 65.5810.03KO-WI-S V1 W Box qty: 1 pc
  • type: cabinet angle template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
cabinet angle template
colour/surface
white
material
nylon
scope of delivery
1x marking template
type of template
cabinet angle template
